Tillix 1HD-FTE Billet Stainless EGR Blanking Plate
Clean up the engine bay and properly blank the EGR port on your 1HD-FTE or 1HZ exhaust manifold with a plate that’s actually built for the job.

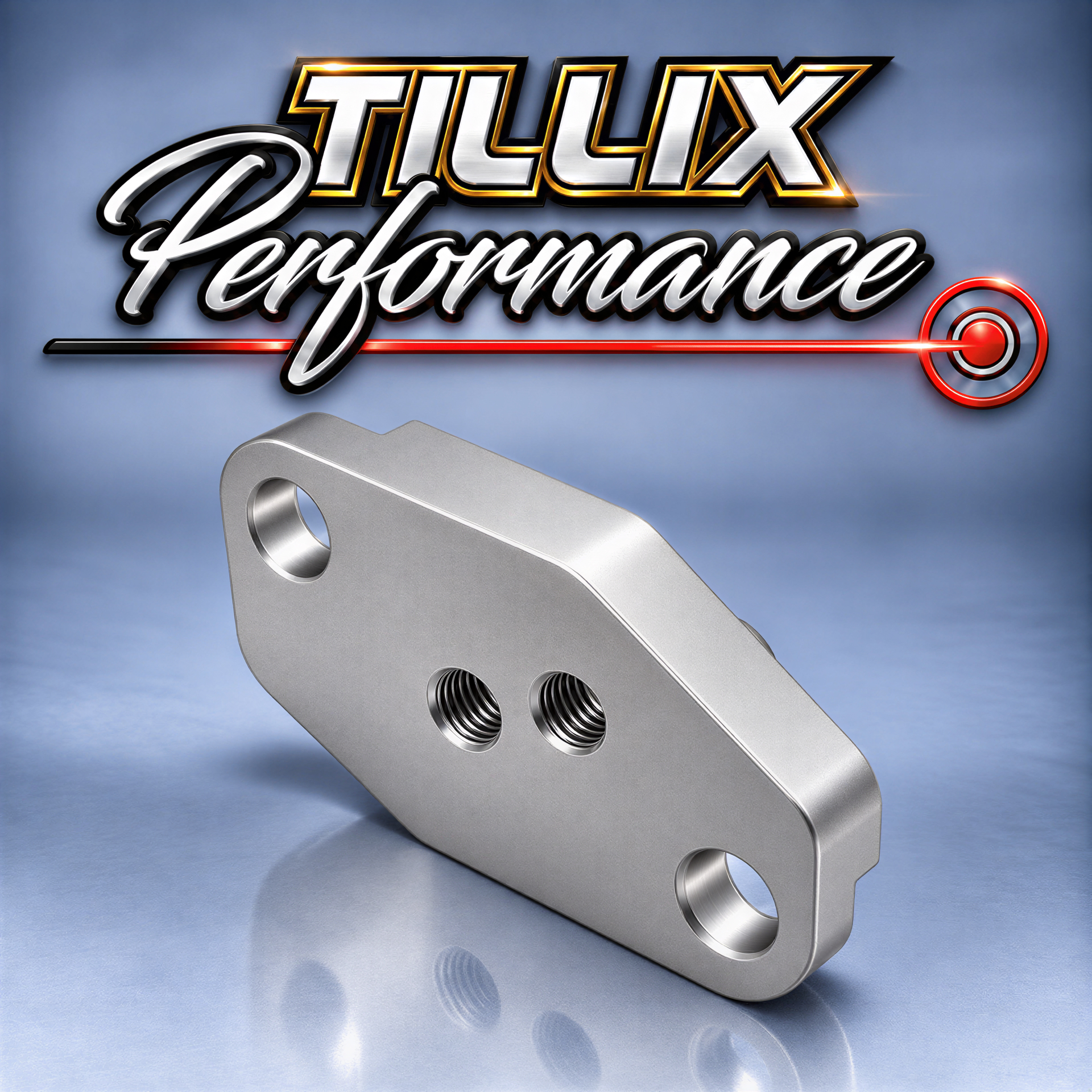

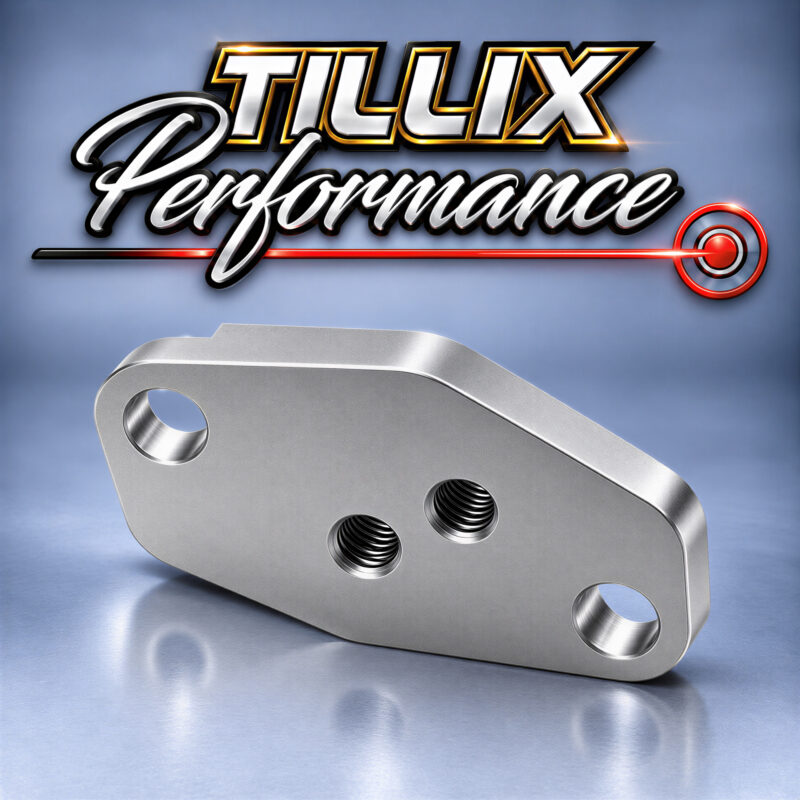

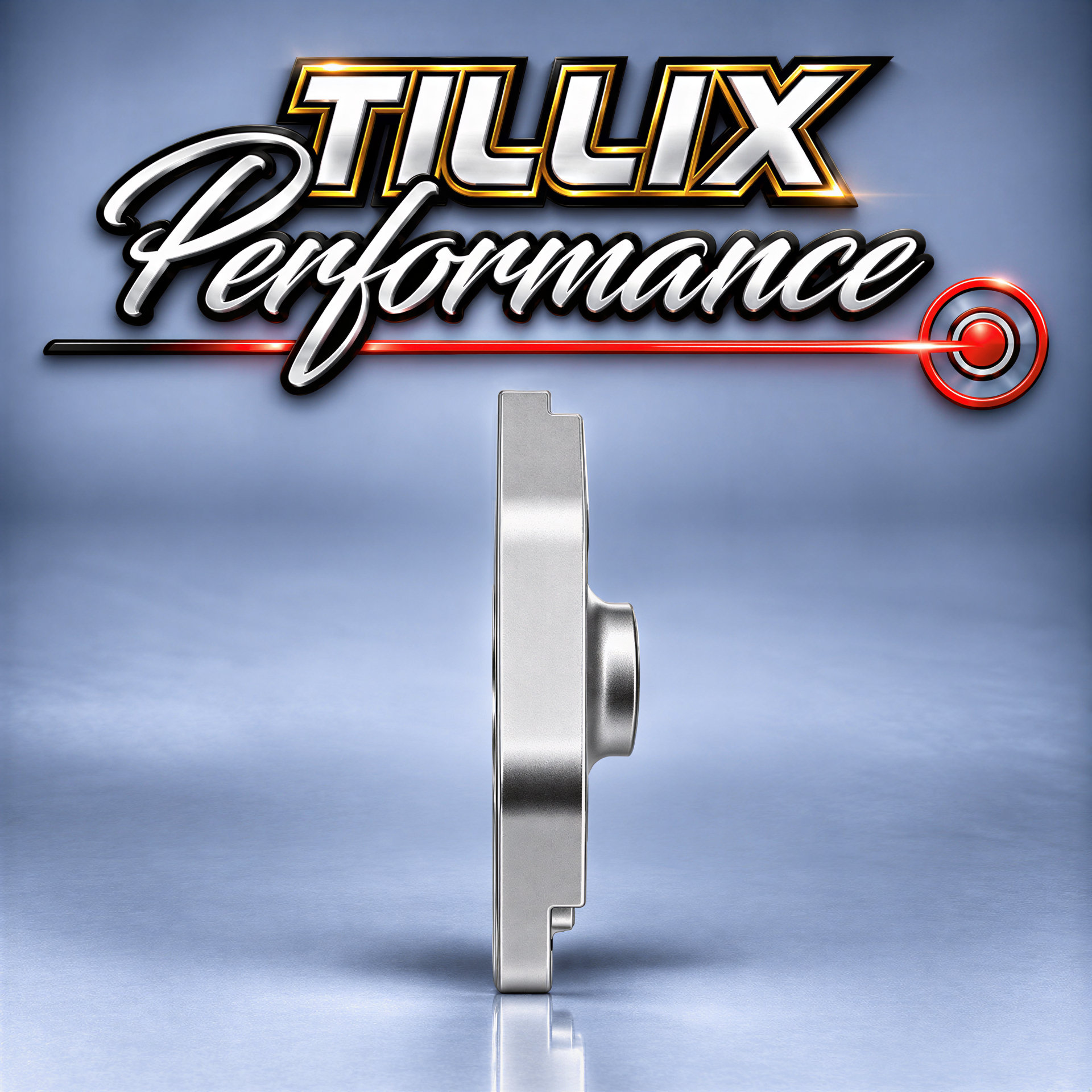

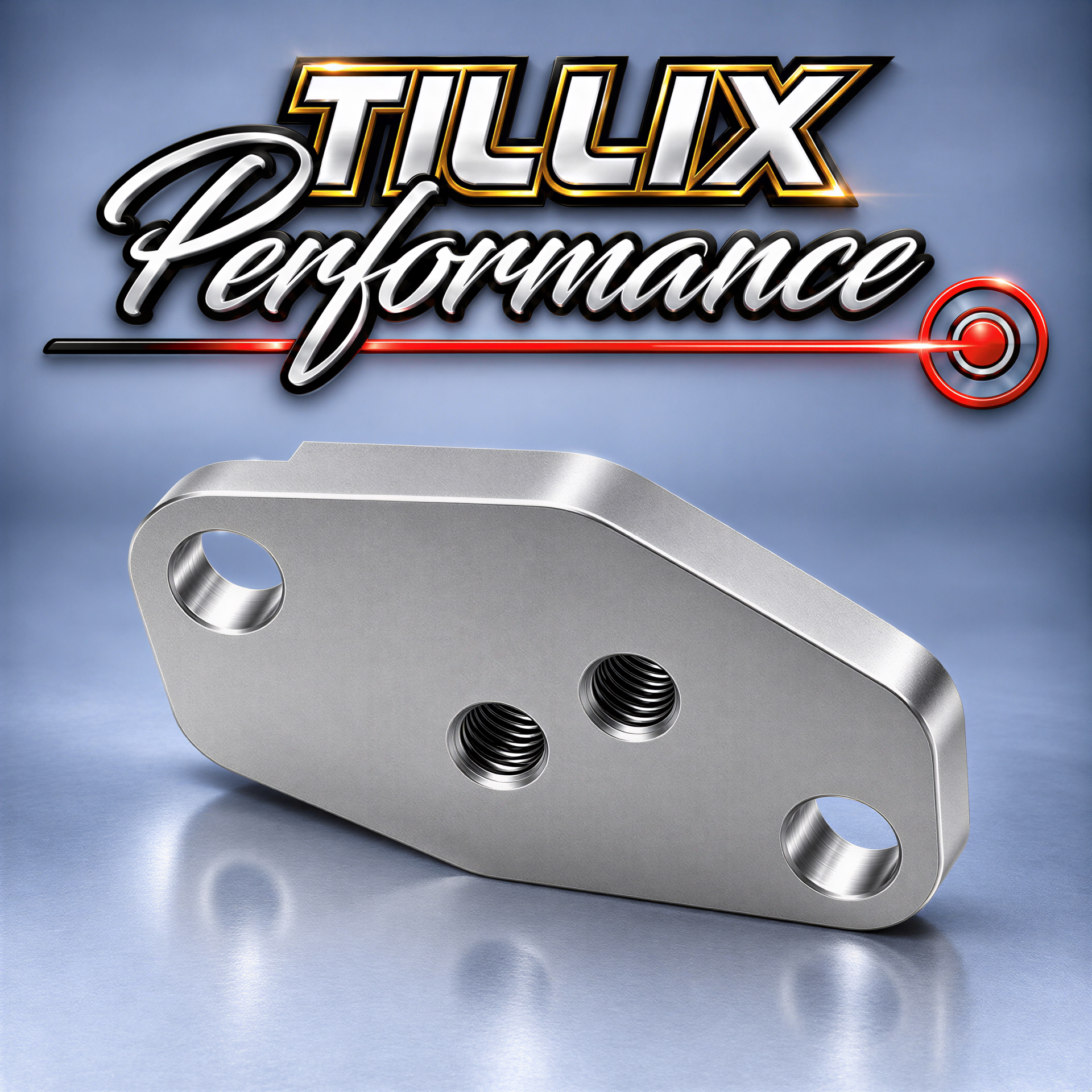

Thin laser-cut slip-in plates often bow under exhaust pressure and leak over time, especially once the EGR pipe is removed. This plate is CNC machined from solid billet stainless steel so it stays flat and seals properly for the long haul. The thickness also lets you keep the original manifold studs — no need to fight with seized studs or switch to short bolts.

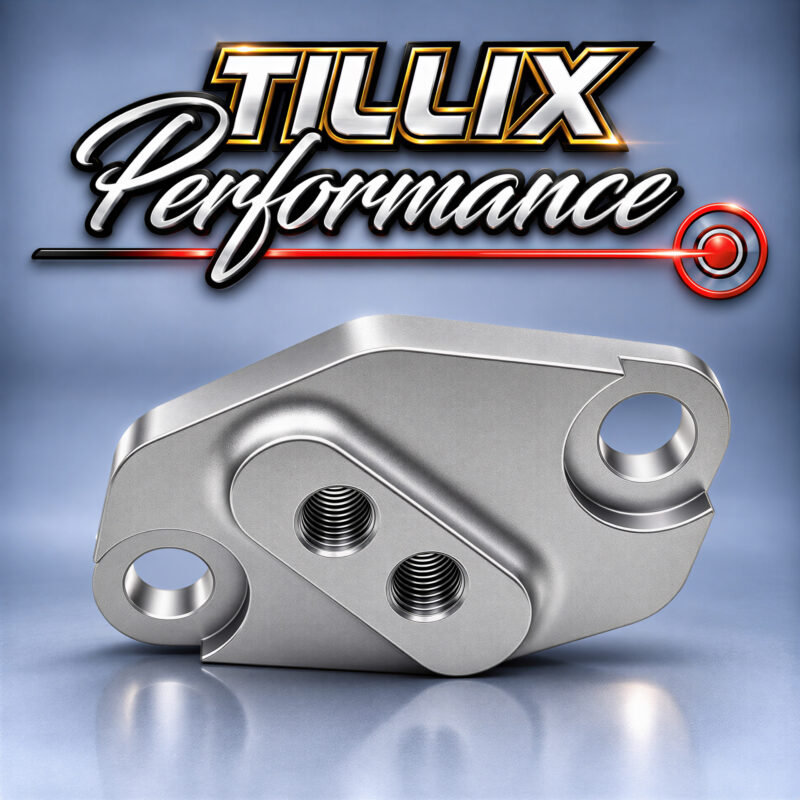

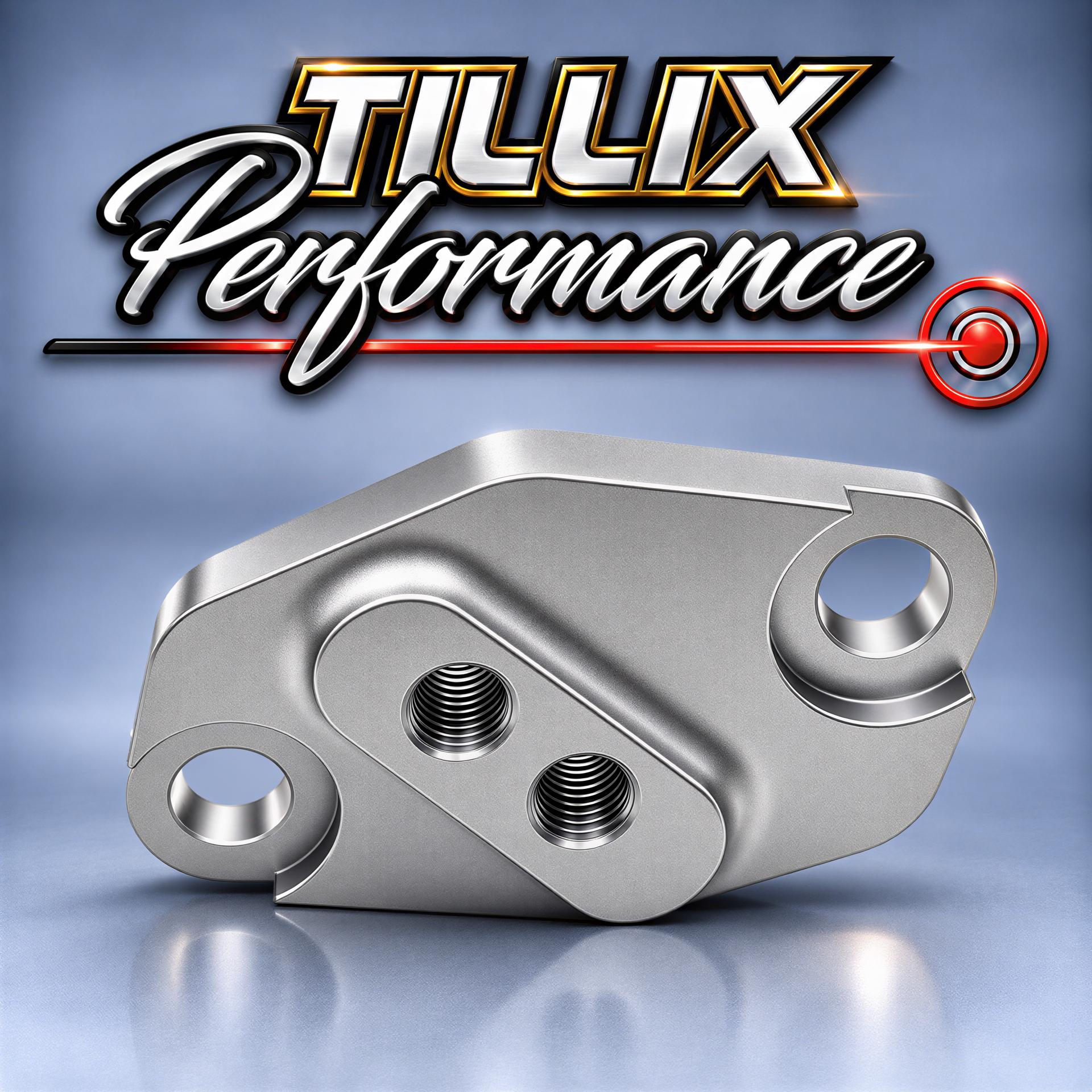

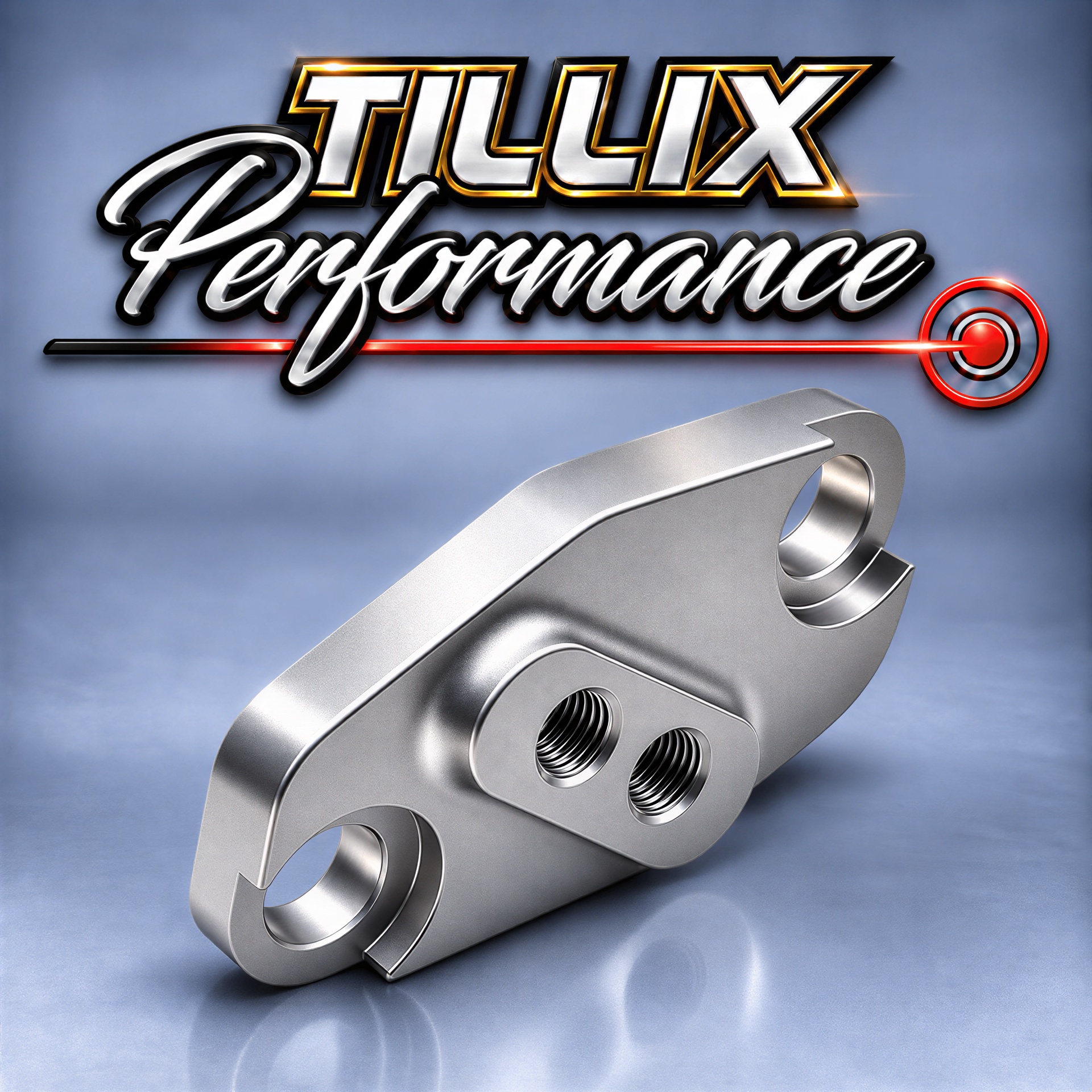

Two 1/8″ NPT ports are tapped into the face so you can run an Exhaust Gas Temperature (EGT) probe and an Exhaust Manifold Pressure (EMP) sensor (or leave them blocked with the supplied plugs).
Key Features
- CNC machined from billet stainless steel
- Media-blasted satin finish (OEM Look rather than Billet machined finish)
- Dual 1/8″ NPT ports for EMP + EGT sensors (plugs included)
- Thick design that won’t warp or leak under heat and pressure

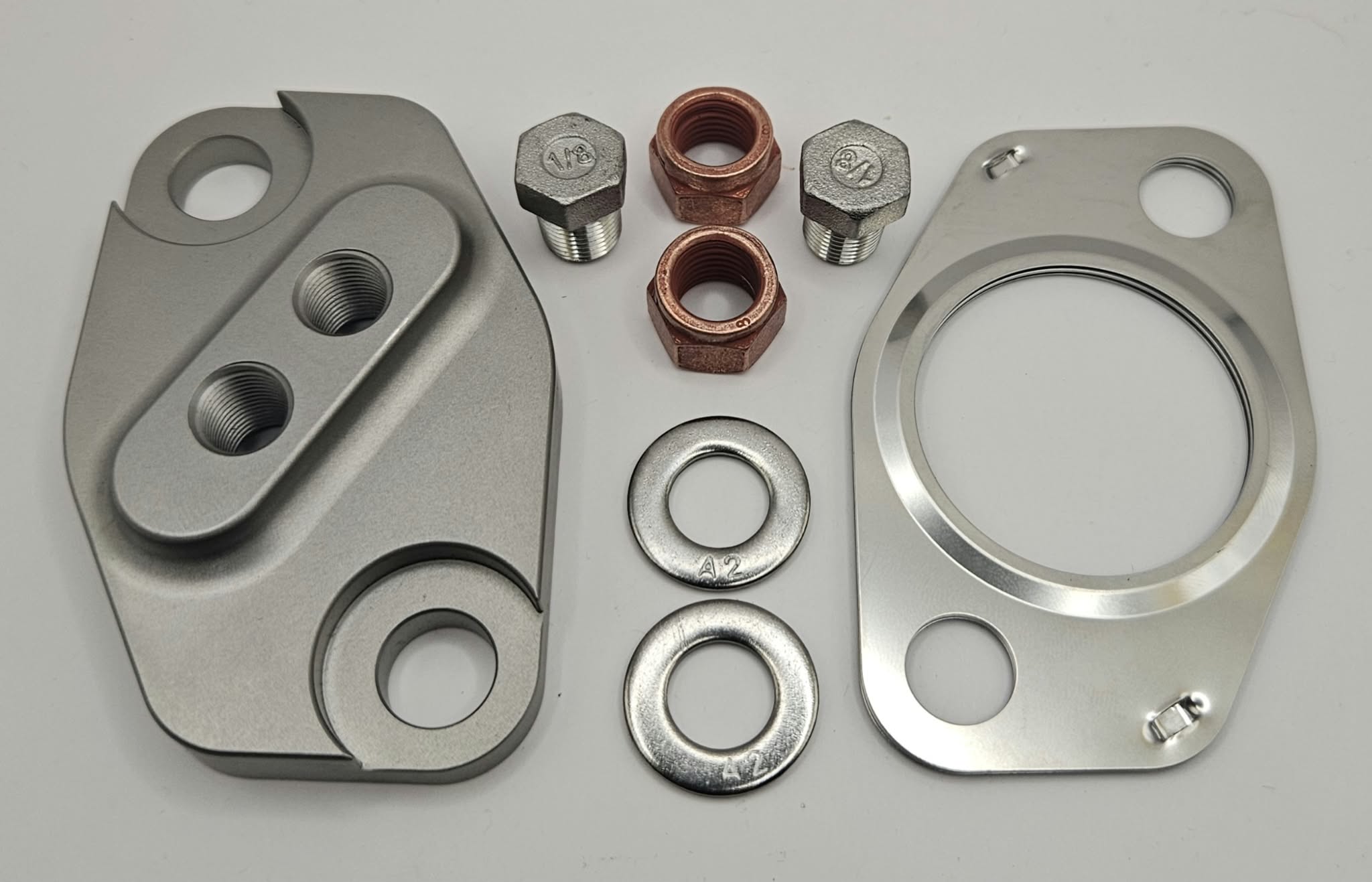

- Works with factory manifold studs, New lock nuts and washers supplied.
- Perfect fit on the rear EGR port of the factory 1HD-FTE / 1HZ manifold
Suitable for
- Toyota LandCruiser HDJ100 (1HD-FTE)
- Toyota LandCruiser HDJ78 / HDJ79 (1HD-FTE)
- 1HZ engines fitted with factory EGR (typically 2001+)
Fitment Notes
- Installs on the manifold side of the EGR port
- Too thick for slip-in use between the pipe and manifold (designed for full EGR pipe removal)
- Genuine Toyota EGR gasket included.
Common Purchased With 1HD-FTE EGR Valve Removal Kit
 https://www.tillix.com.au/product/1hd-fte-egr-delete-kit-for-toyota-landcruiser-79-100-series/
Disclaimer
For off-road / competition use only. Removing or modifying emissions equipment may be illegal on public roads in your area. Check local laws before fitting.
