Tillix Heater Grid Delete Kit to suit Toyota LandCruiser 1HD-FT & 1HD-FTE engines (HDJ80 / HDJ100 / 70 Series).

The factory intake heater grid sits directly in the airflow path between the shutdown valve and intake manifold. While it can assist cold starts in extreme sub-zero conditions, it creates a permanent restriction, adds high electrical load (often 40–100+ amps), and is a known source of relay and wiring issues. In Australian and most other temperate climates additional intake heating is not required.

Removing the heater grid restores full, unrestricted intake flow, reduces electrical demand on the battery and alternator, and eliminates a potential failure point. The result is improved throttle response, and better efficiency — especially noticeable on modified or higher-boost engines.

These Tillix Heater Grid Deletes are CNC-machined from billet alloy, media blasted, and clear anodised for a clean, factory-looking OEM finish that matches the rest of the engine bay.

Choose your design

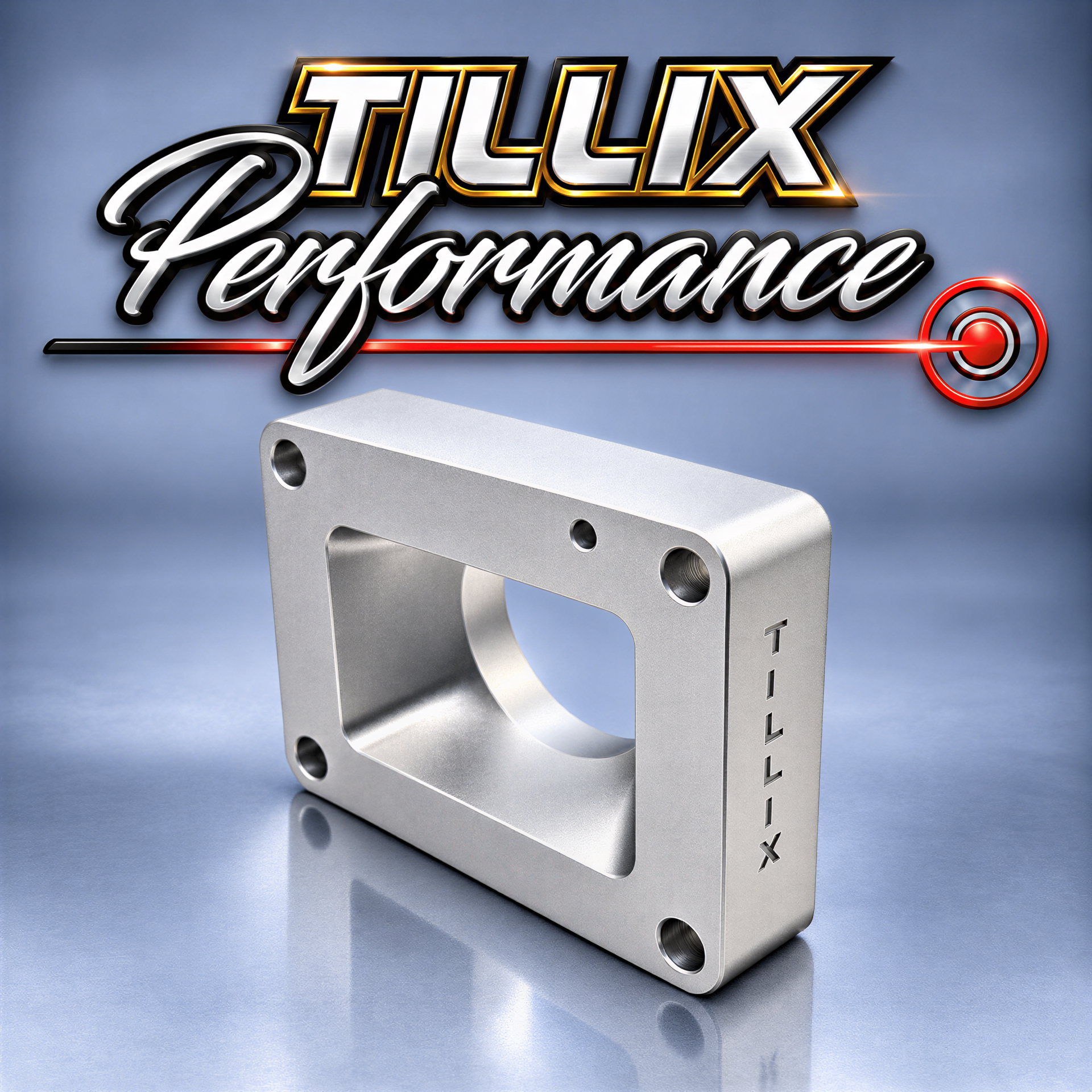

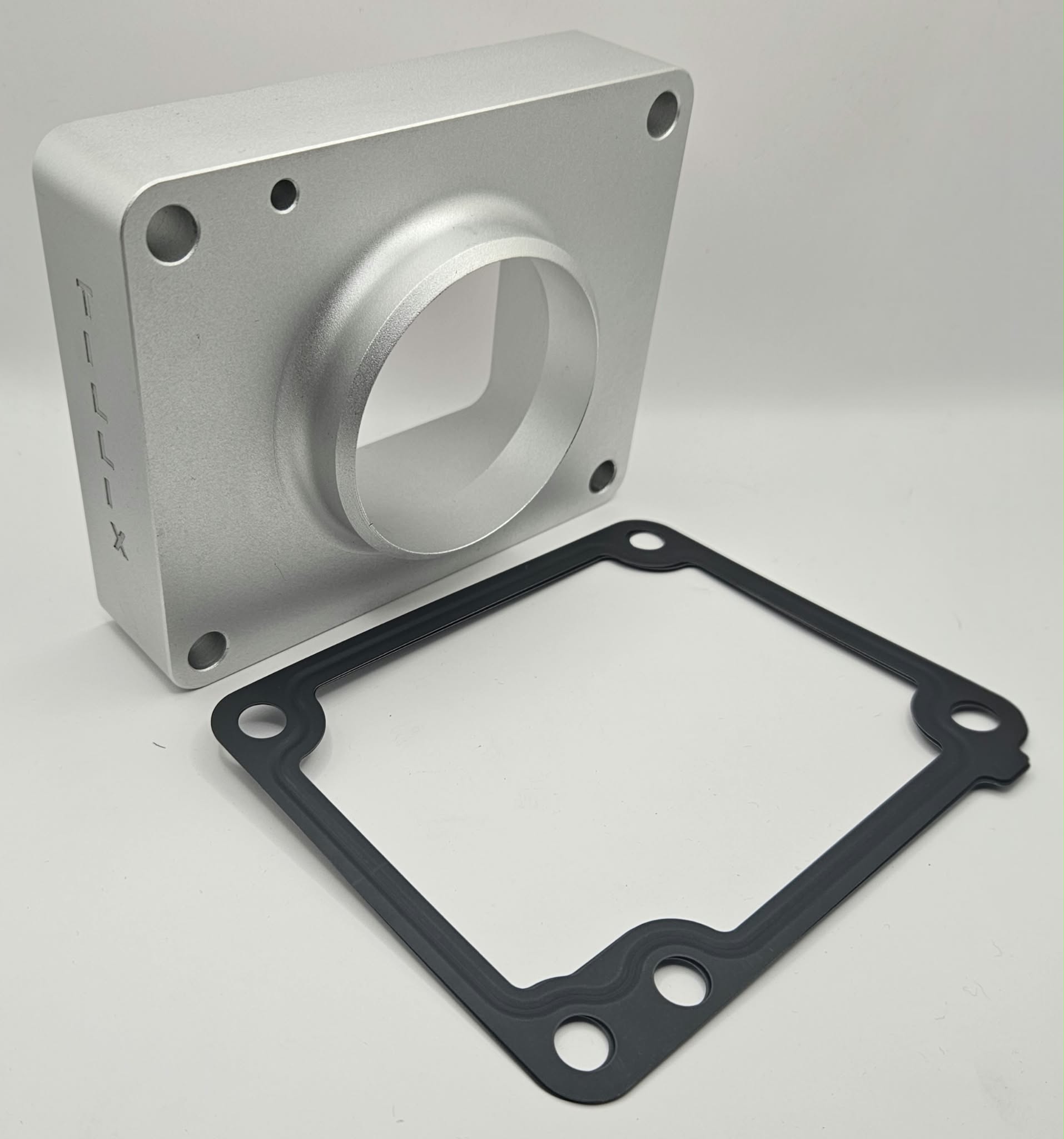

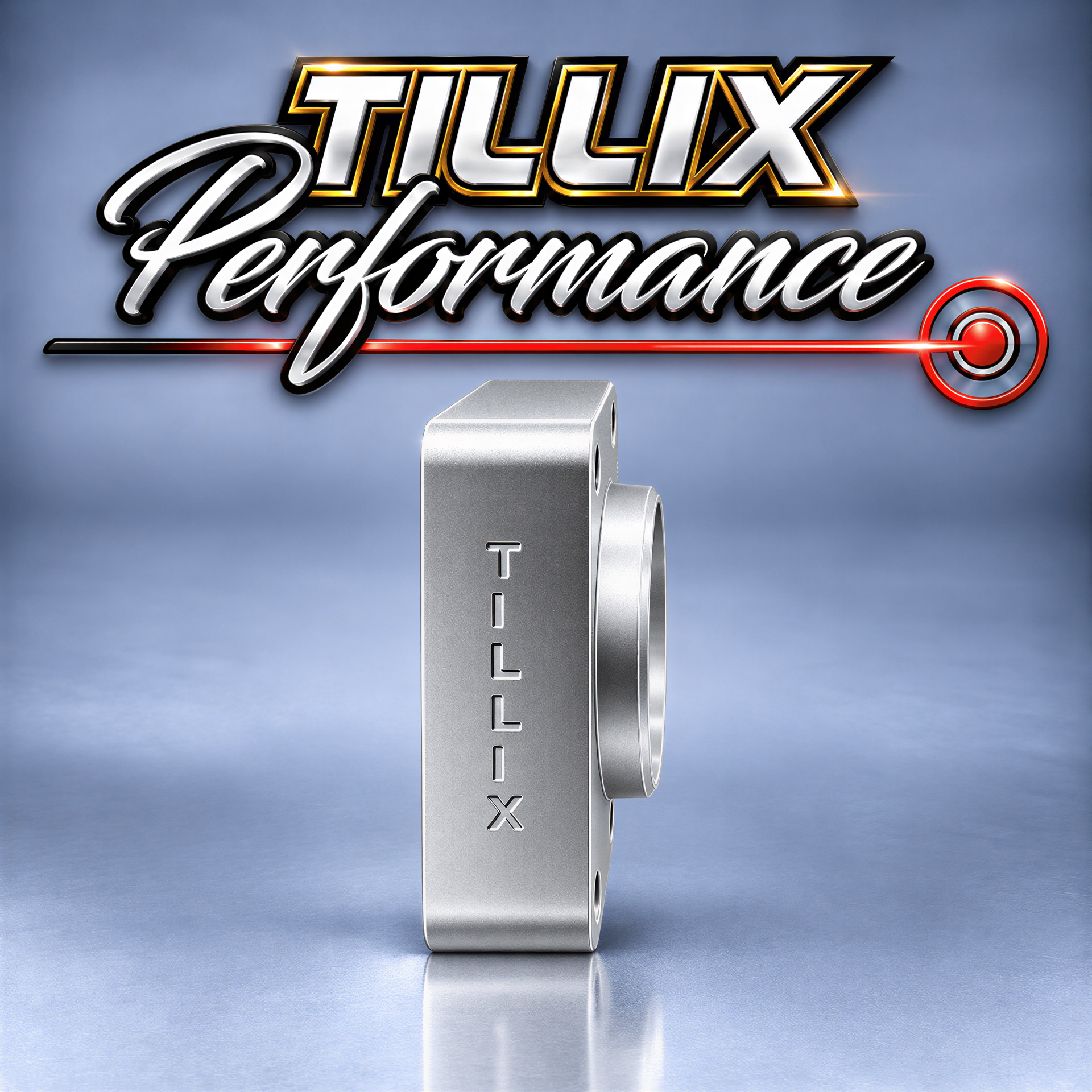

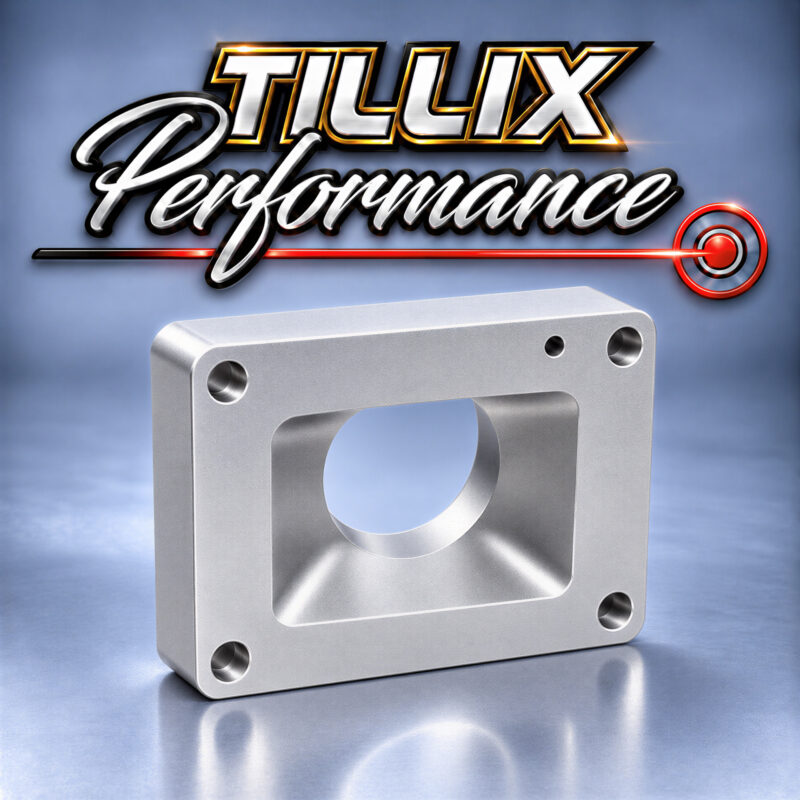

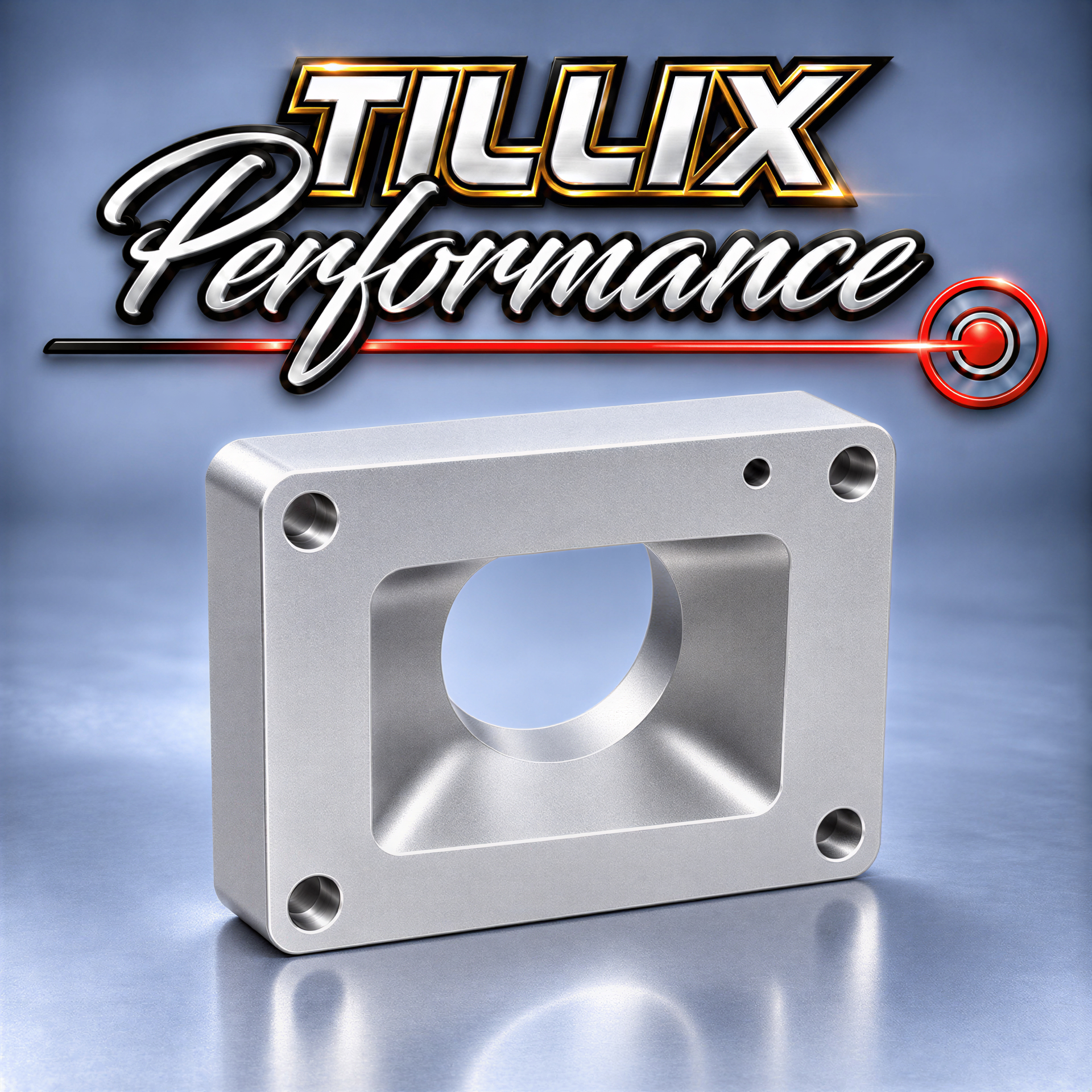

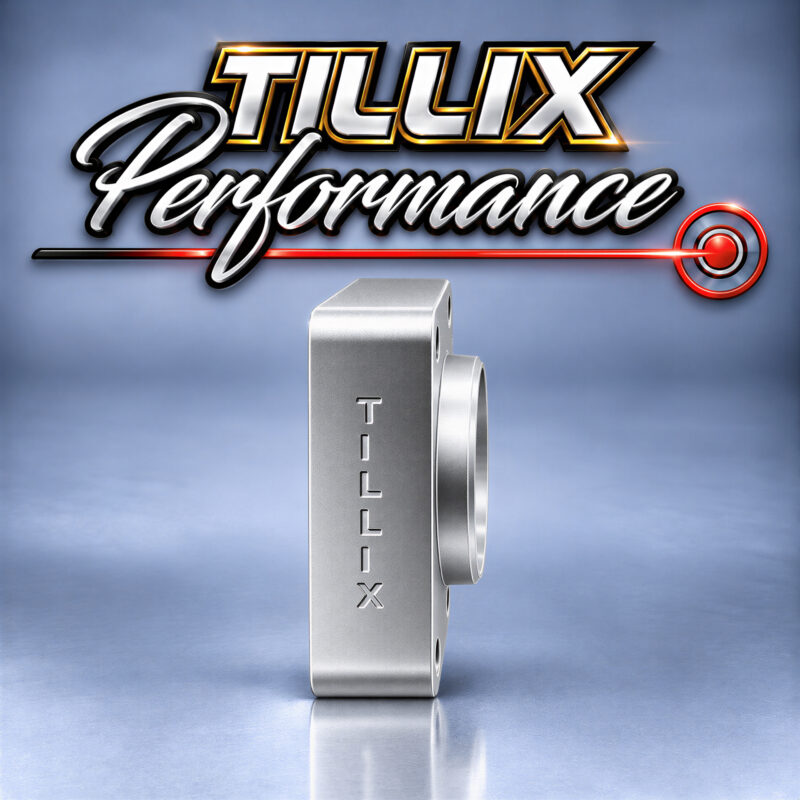

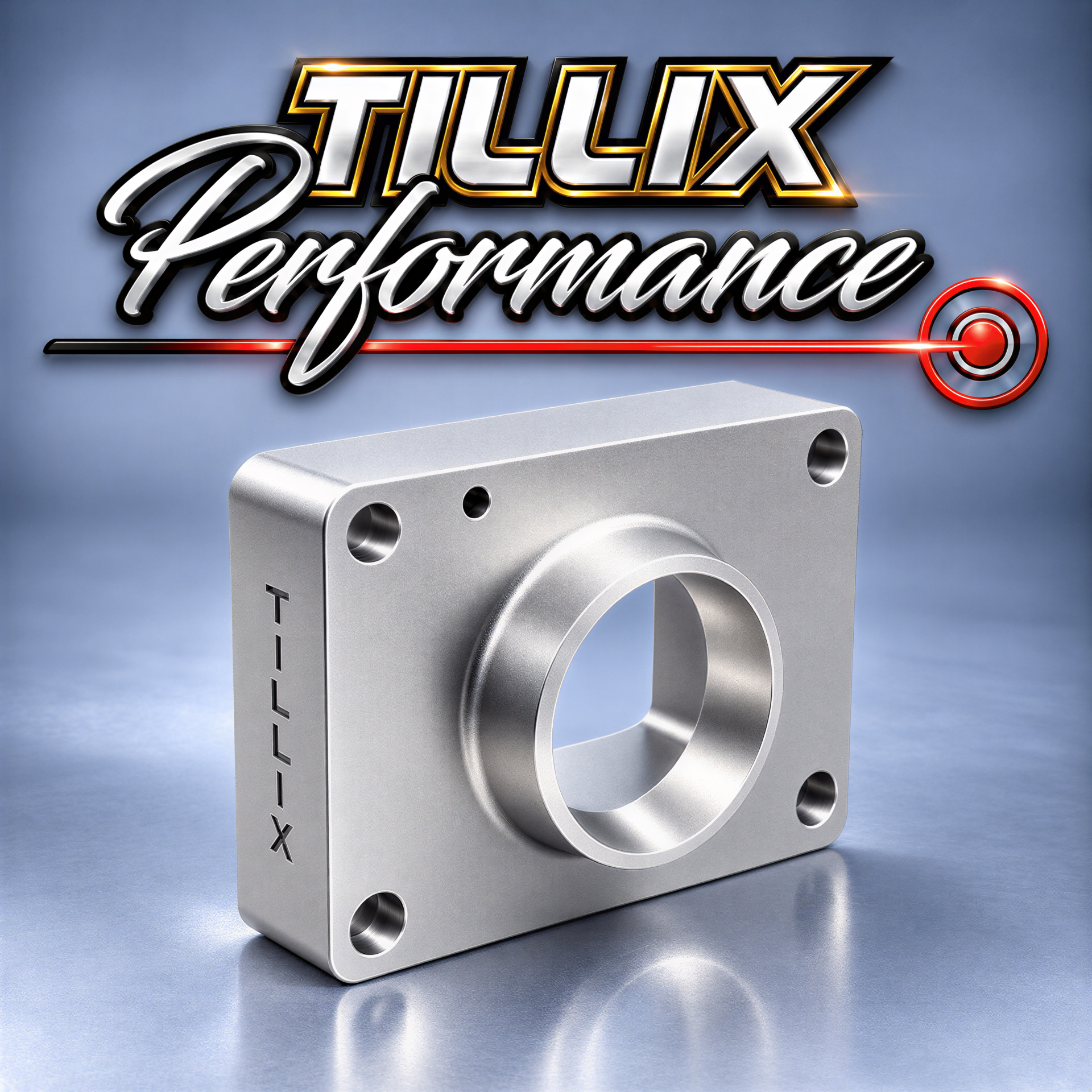

• Spigot — Designed to align perfectly with the inside diameter of the shutdown valve for optimal flow and a seamless transition.

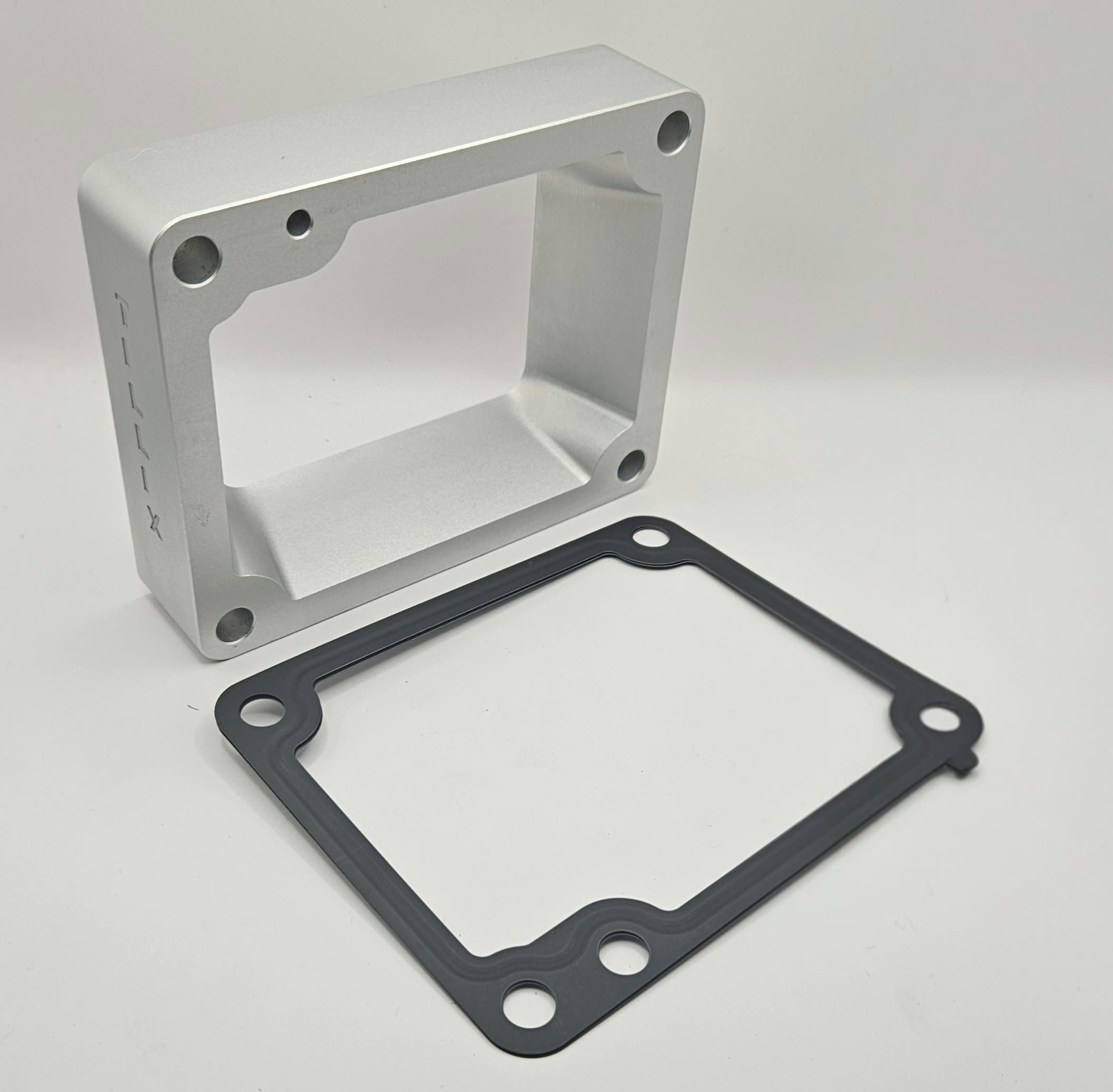

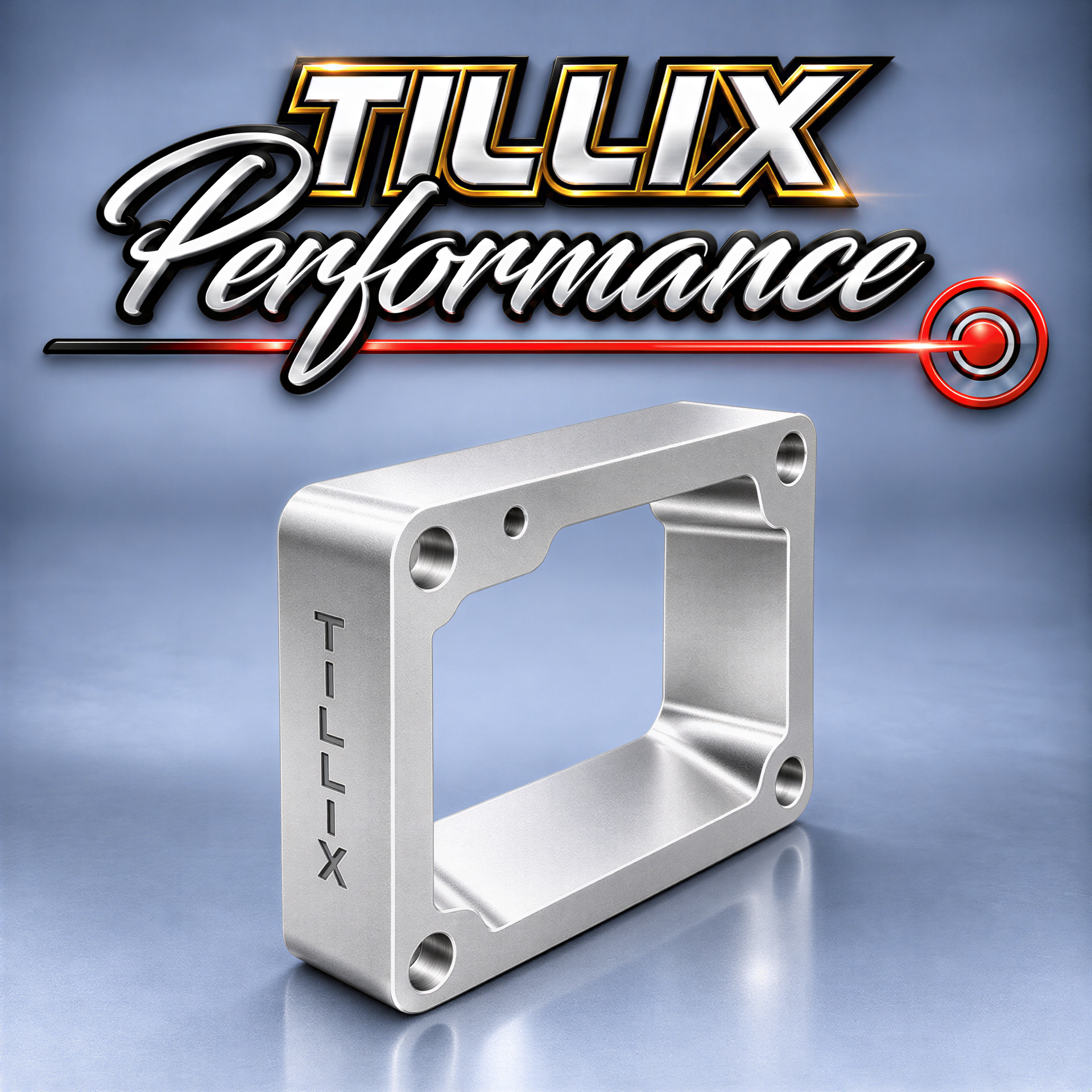

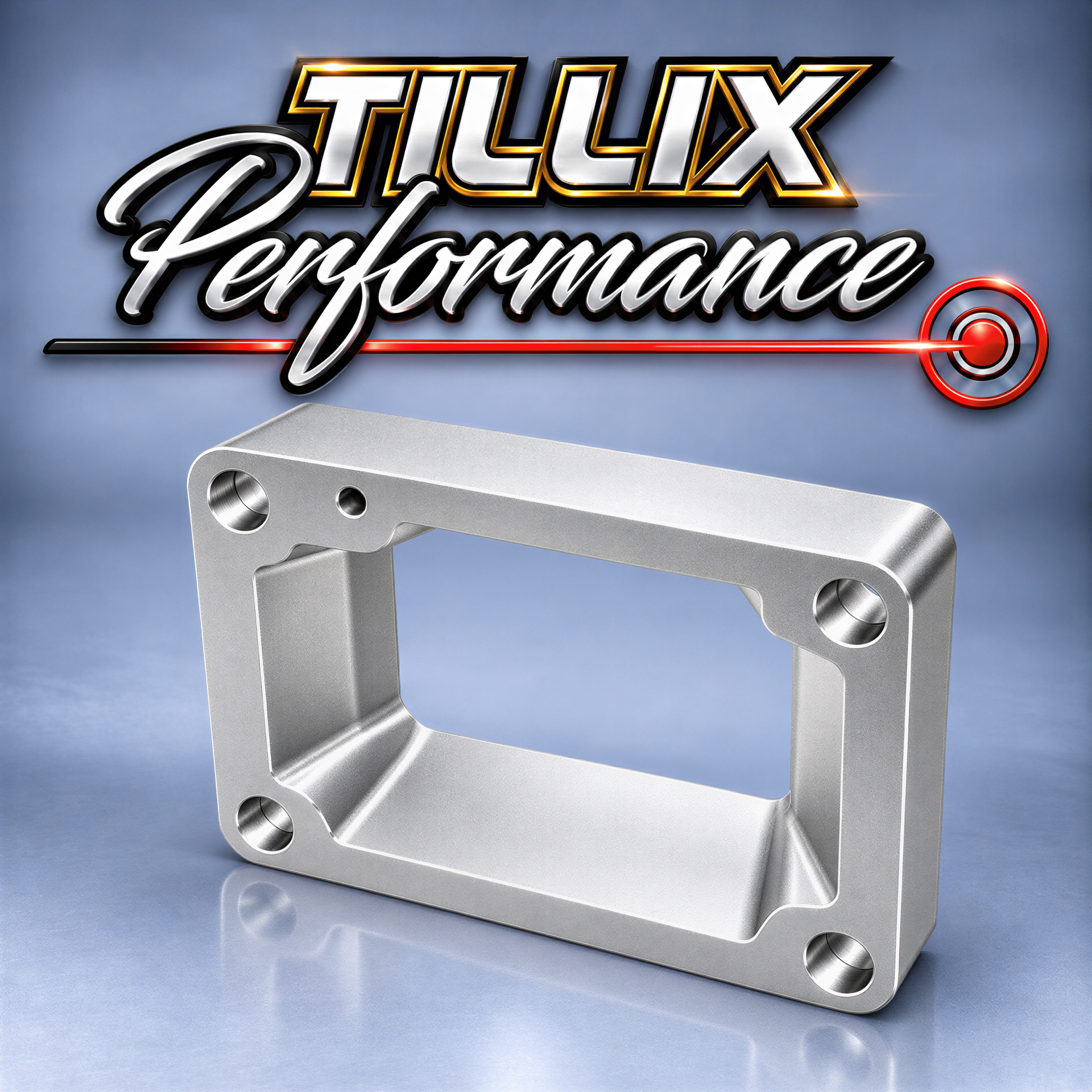

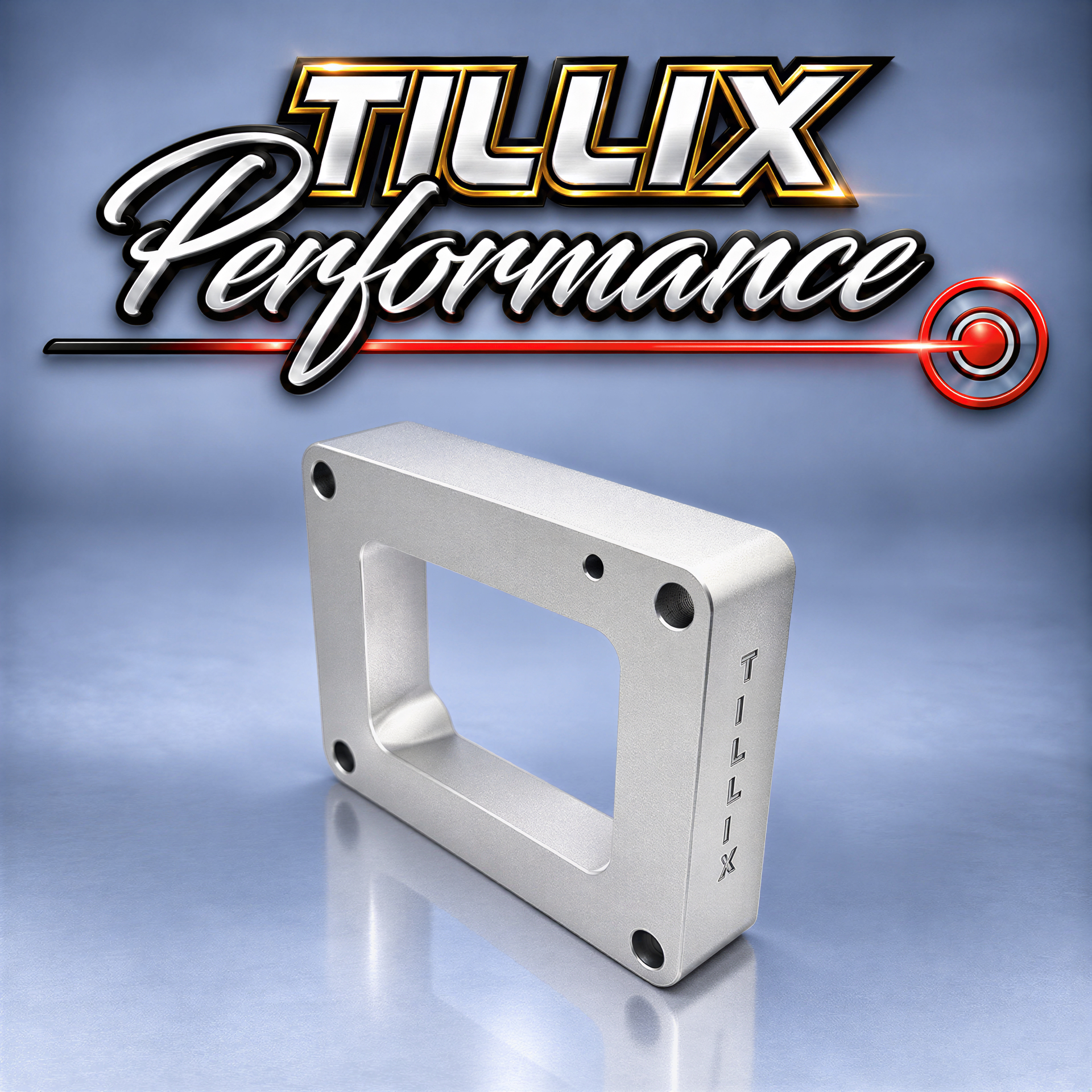

• Open — Open design for anyone wanting to make their own intake pipe in any size or configuration.

Key Features

• CNC billet alloy construction
• Media blasted and clear anodised OEM-style finish
• Removes the restrictive factory heater grid
• Reduces high electrical current draw and associated relay/wiring stress
• Improves intake airflow and throttle response
• Supplied with all new genuine gaskets
• Direct bolt-on replacement
• Available in Spigot or Open designs

What’s Included

• 1 × CNC billet heater grid delete (Spigot or Open as selected)
• All new genuine Toyota gaskets

Also consider while you’re in there

Pair this with our 1HD-FTE EGR Delete Kit to fully clean up the intake side and eliminate another common restriction and carbon source.

If you’re also working on the exhaust side, upgrade to our Inconel Exhaust Manifold Stud Kit 1HZ, 1HD-T, 1HD-FT, 1HD-FTE — these will not stretch or break like the factory studs.

Fitting instructions available in the downloads section once published.

Disclaimer: This product is intended for off-road or race use only.
Product image for illustration purposes only actual product may vary.
