EGR Blanking Plate Nissan ZD30 DI & CRD
1mm Stainless Steel | Laser Cut | DI & CRD

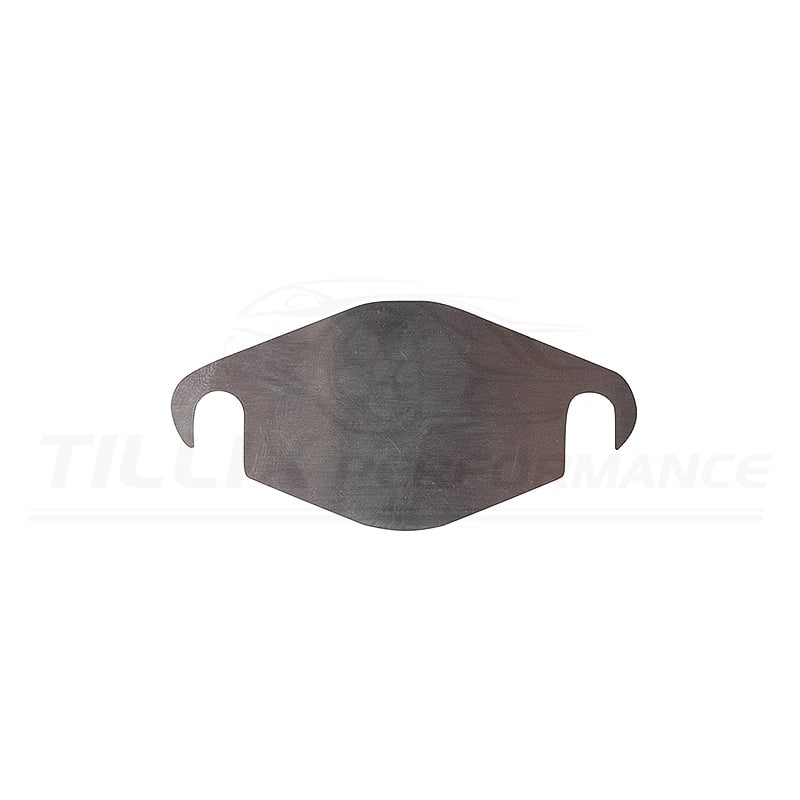

Block the EGR system on your ZD30 cleanly and simply with this precision laser-cut 1mm stainless steel blanking shim.
Designed to suit both Direct Injection (DI) and Common Rail (CRD) ZD30 engines, it installs between the EGR valve and the pipe (or at the manifold side depending on your setup) to stop exhaust gas recirculating into the intake. This helps reduce soot buildup in the intake manifold, keeps the engine cleaner, and can improve throttle response and fuel economy.
At only 1mm thick, it is a true slip-in style plate — easy to fit without needing to fully remove the EGR pipe in most cases.
Key Features
- 1mm 304 stainless steel
- Precision laser cut for a clean, accurate fit
- Suits either ZD30 DI or CRD engines.
- DI = 2000 – 2006
- CRD = 2007+
- Thin shim design for easy installation
- Corrosion and heat resistant
- Australian designed and made
Suitable For
- Nissan Patrol GU / Y61 ZD30 DI
- Nissan Patrol GU / Y61 ZD30 CRD
- Nissan Navara D22 ZD30 DI
- Other ZD30 applications where the EGR flange matches
Fitment Notes
- Installs as a blank between the EGR valve and EGR pipe (intake side) on most applications
- Confirm your specific flange before ordering if unsure
- For off-road / competition use only
Disclaimer
Removal or modification of emissions equipment may be illegal for on-road use in your area. Check local laws before fitting. This product is intended for off-road or race use only.
