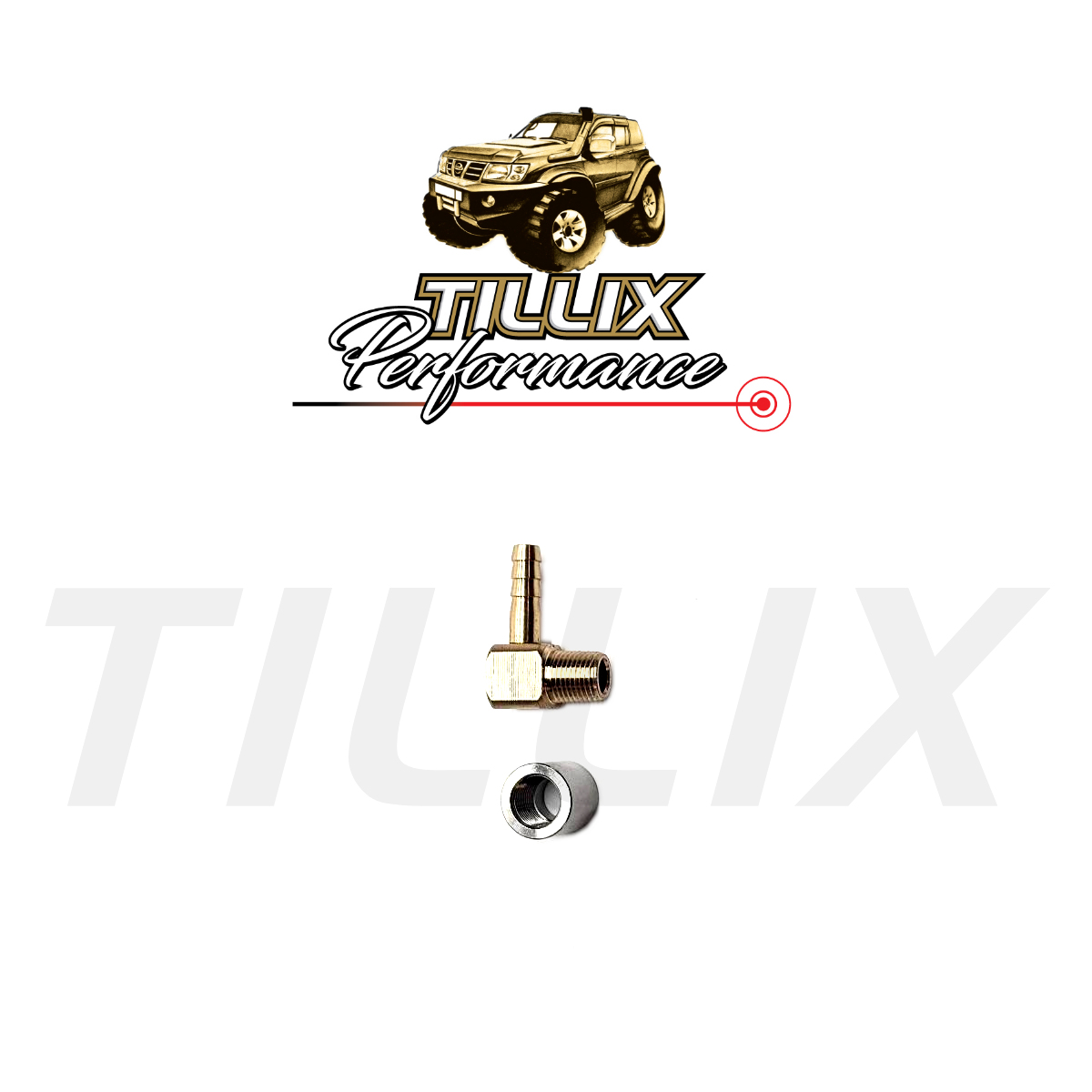

Stainless Weld-on Socket with 90deg Brass hose tail

$10.20 inc. GST

316 Grade 1/8th BSP threaded weld on fitting with 90-degree brass hose tail. Brass hose tail is 90 degrees, 1/8th BSP threaded with a 5.75mm hose end. It Couples perfectly with our 4mm silicone hose https://www.tillix.com.au/product/tillix-performance-silicone-hose/. No hose clamps or cable ties are required to prevent the hoses from coming off due to the shape of the barbs machined into the hose end of the fitting. These are not just formed/rounded hose tails as you would buy from a local hose and fittings supply warehouse. The machining performed on these fittings is with a sharp edge on the back side of the fitting to prevent the hose from slipping off, even under high boost applications. The same principle can be found in larger-size “Push Lock” brands for coolant and pressure hoses.

Add to Cart

Weld on Stainless socket with 90deg brass hose tail
Stainless Weld-on Socket with 90deg Brass hose tail $10.20 inc. GST
  • 30 days easy returns
Shop Securely with


Stainless Weld-on Socket with 90deg Brass hose tail bundle contains, 316 Grade Stainless Steel 1/8th BSP threaded weld on socket, including 90-degree brass hose tail fitting.

The brass hose tail is 90 degrees, 1/8th BSP threaded with a 5.75mm hose end. It Couples perfectly with our 4mm silicone hose https://www.tillix.com.au/product/tillix-performance-silicone-hose/.
No hose clamps or cable ties are required to prevent the hoses from coming off due to the shape of the barbs machined into the hose end of the fitting.

These are not just formed/rounded hose tails as you would buy from a local hose and fittings supply warehouse. These fittings are precision machined to perform under pressure with a sharp edge on the back side of the fitting to prevent the hose from slipping off, even under high boost applications.

The same principle can be found in larger-size “Push Lock” brands for coolant and pressure hoses.

Push-lock style fitting information can be found here. https://www.fluidcontrols.co.uk/how-do-push-lock-fittings-work/

Additional information

Weight 0.03 kg
Dimensions 3.1 × 3.1 × 1.4 cm
