Nissan Patrol TD42 High Mount Split-Pulse Exhaust Manifold. Constructed from SiMo Ductile iron.

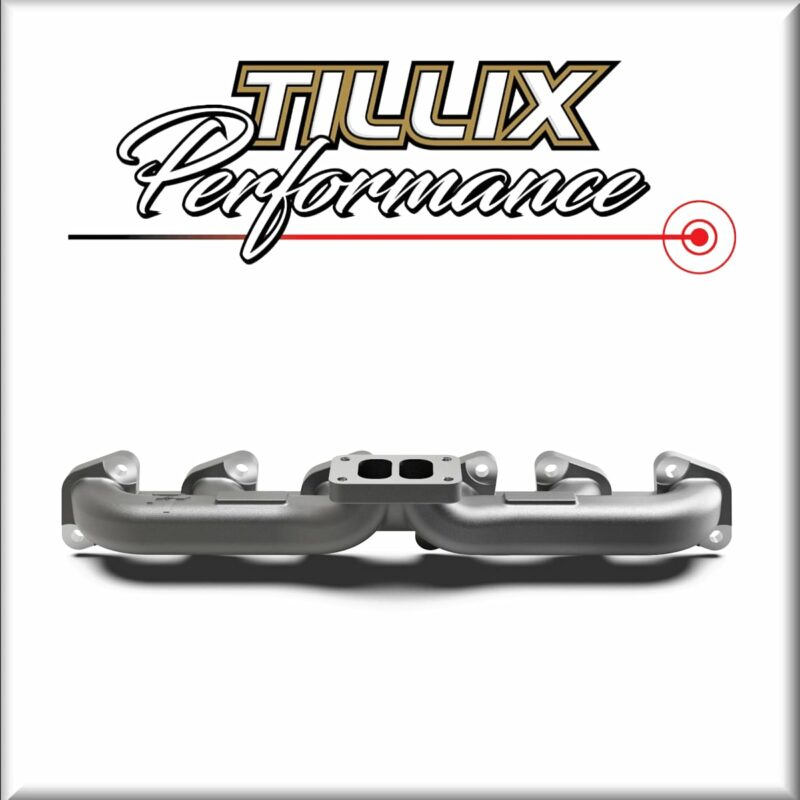

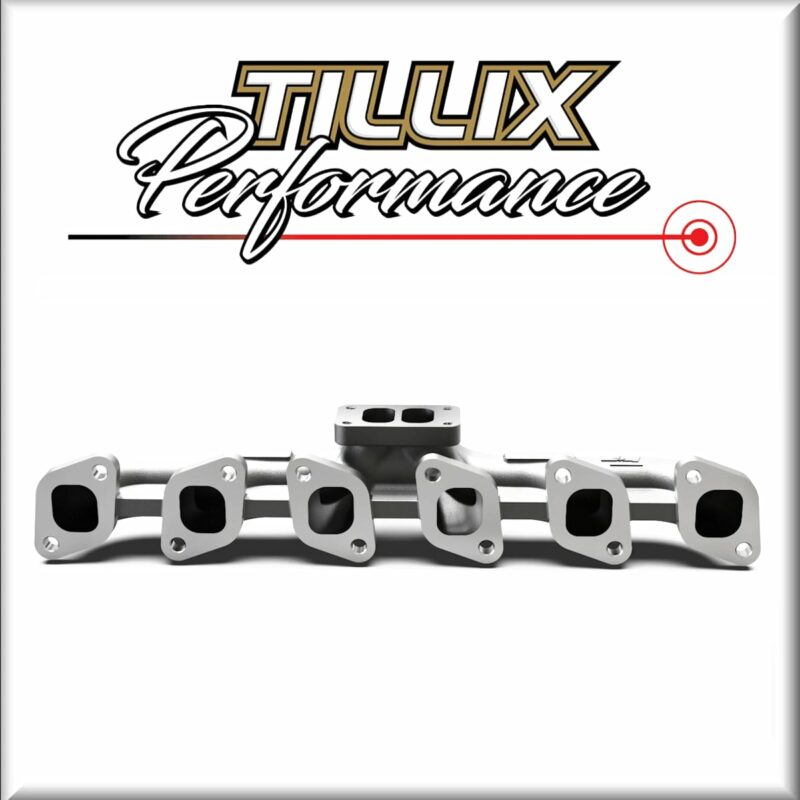

Our TD42 High Mount Split-Pulse Exhaust Manifold fits all GQ/GU TD42/TB42/TB45 engines (Silvertop or Blacktop). Moving the turbo position to a high mount configuration with the T3 flange located dead centre of the exhaust manifold.
It also allows more space for dump pipe variations, larger diameter dump pipes and removes the need to bring the dump pipe down at such an acute angle to clear the firewall and heater hoses.
IMPORTANT NOTE: This manifold is not a direct factory replacement – If you have any questions regarding the fitment of this manifold, please email or call us before purchasing this product.

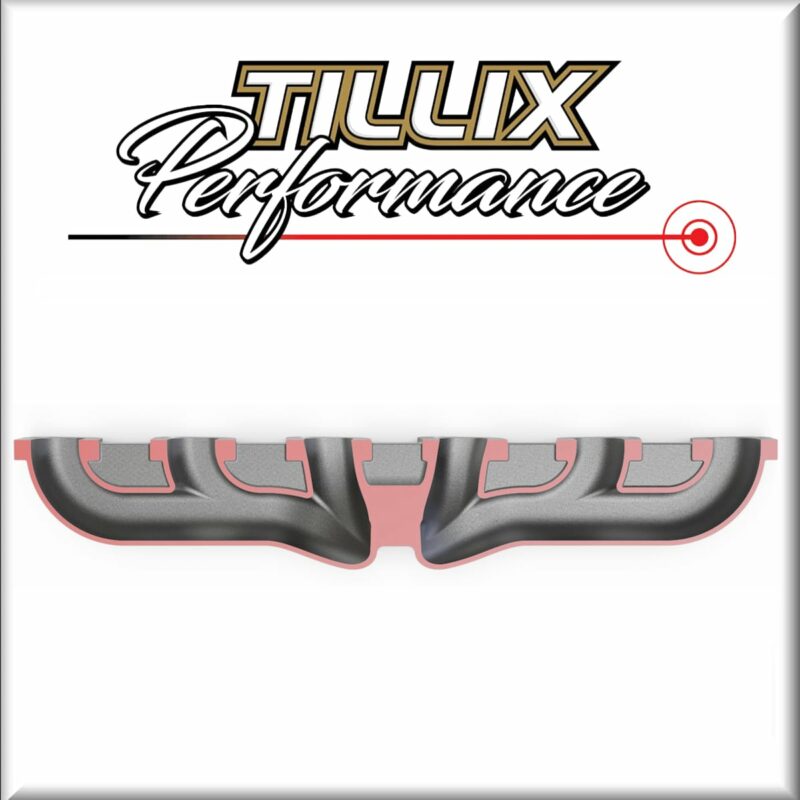

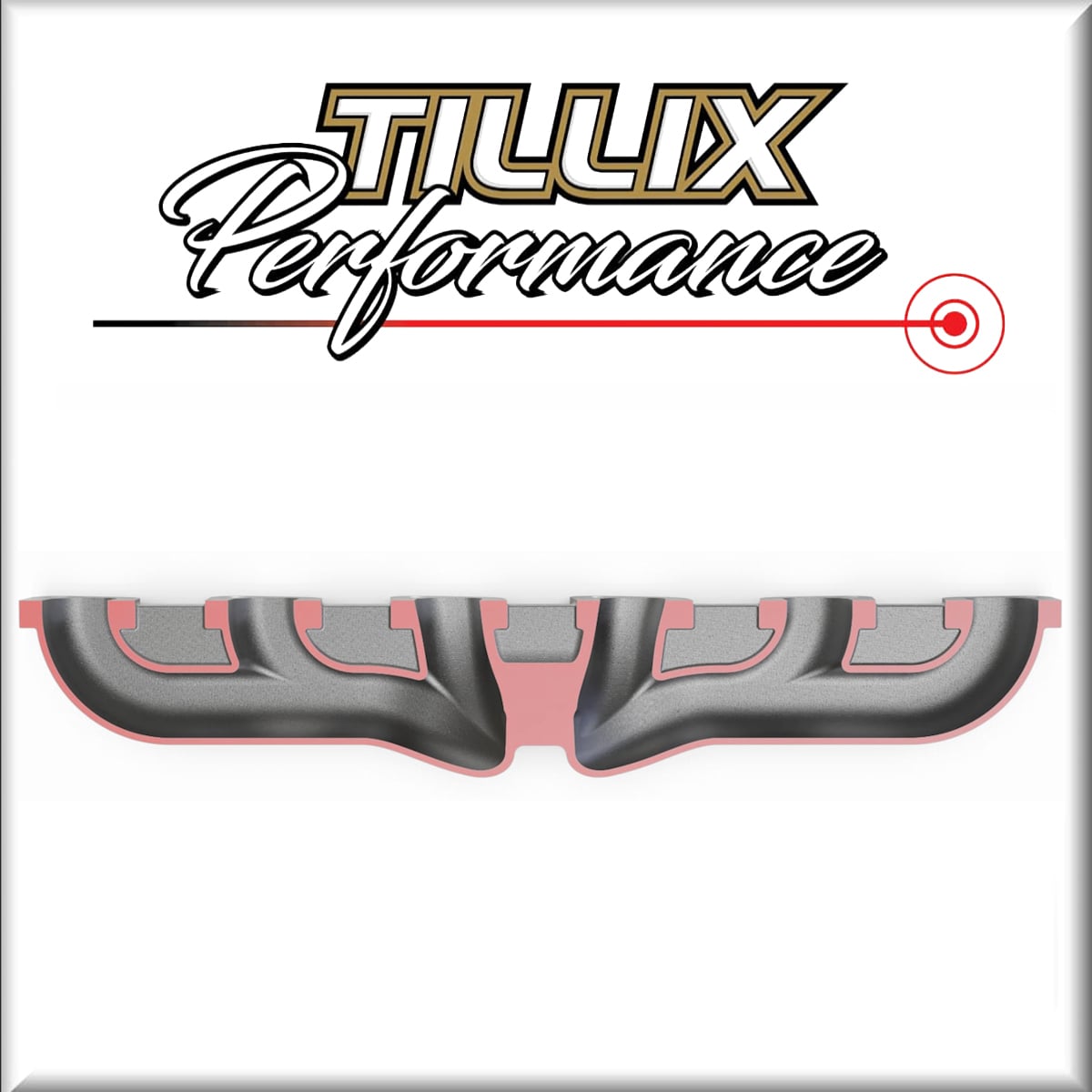

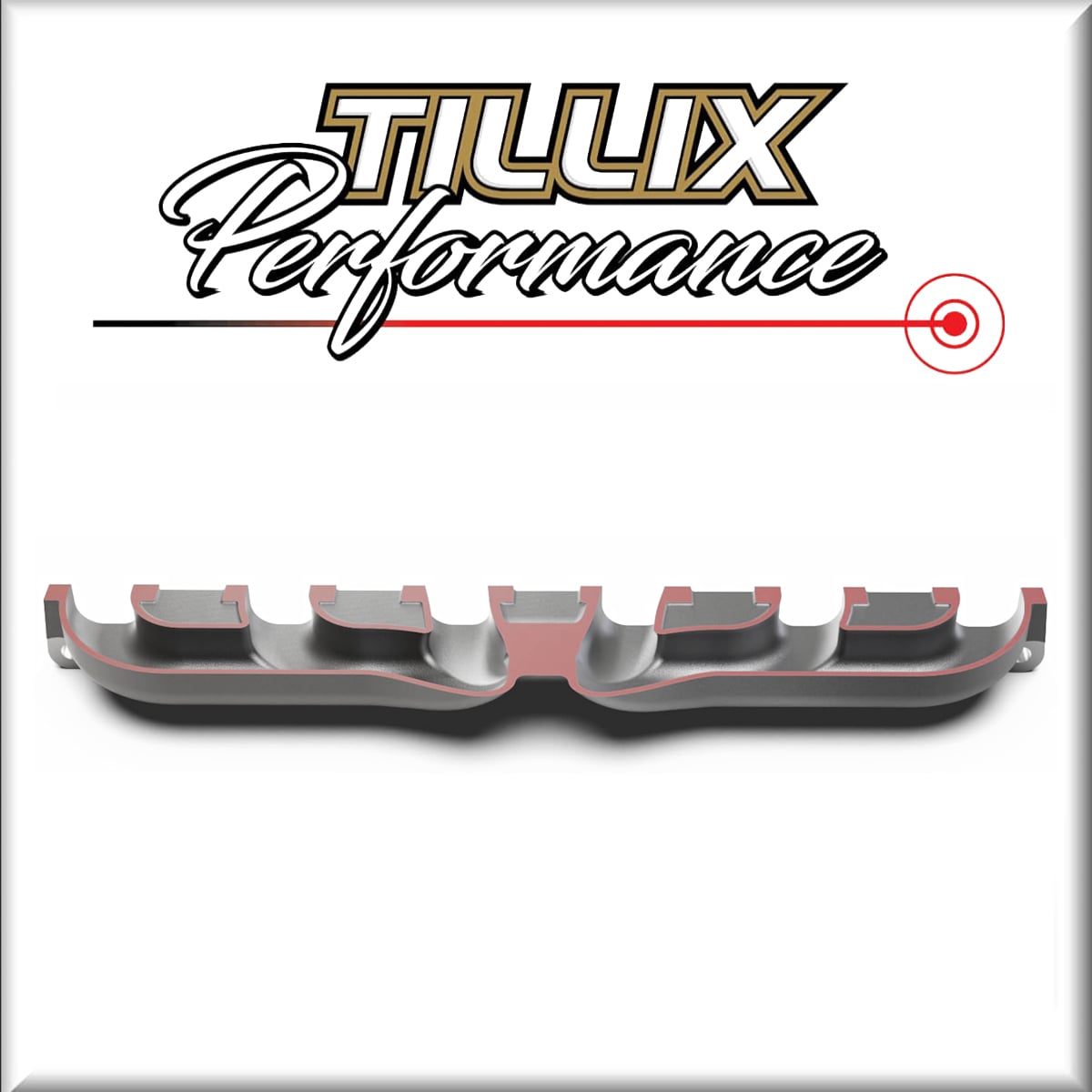

A split pulse exhaust manifold will provide more drive energy to the turbine than conventional merge-type manifolds of an equal design. The larger thermal mass with thicker walls and more material around critical areas also provides better heat retention of the exhaust gas while it travels to the turbine.
The more heat that can be retained from the combustion event and well directed by the use of the split pulse design, the more energy that can be delivered to the turbine. For a given amount of fuel, this will equate to better efficiency, a faster-spooling turbocharger, and more power and torque on any given setup.
There is no external wastegate port provided on this manifold. If you are looking for a manifold to suit an external gate setup, please see our Low Mount Split Pulse Manifold here https://www.tillix.com.au/product/td42-split-pulse-exhaust-manifold/
A pressed stainless steel turbine inlet gasket and 4X M10x1.25mm high tensile flange head bolts will be provided with each manifold.
An Inconel 625 stud kit for fixing the manifold to the head can be purchased separately here
https://www.tillix.com.au/product/inconel-exhaust-manifold-stud-kit-td42-patrol/
Each manifold comes with the choice of a Raw cast finish or HPC Extreme Temp black, with the HPC options performed right here in Brisbane by Pro Custom Coatings – https://www.facebook.com/procustomcoating

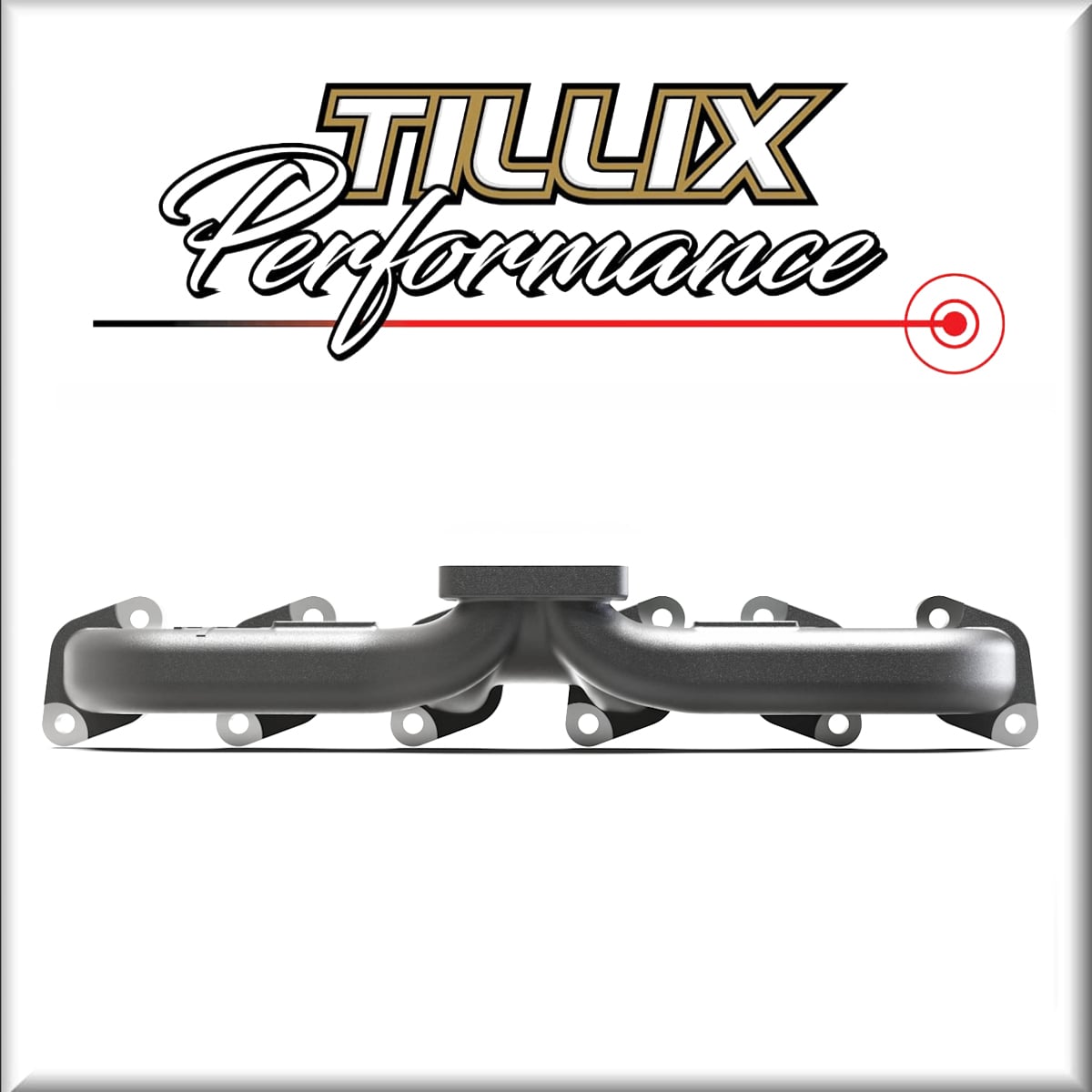

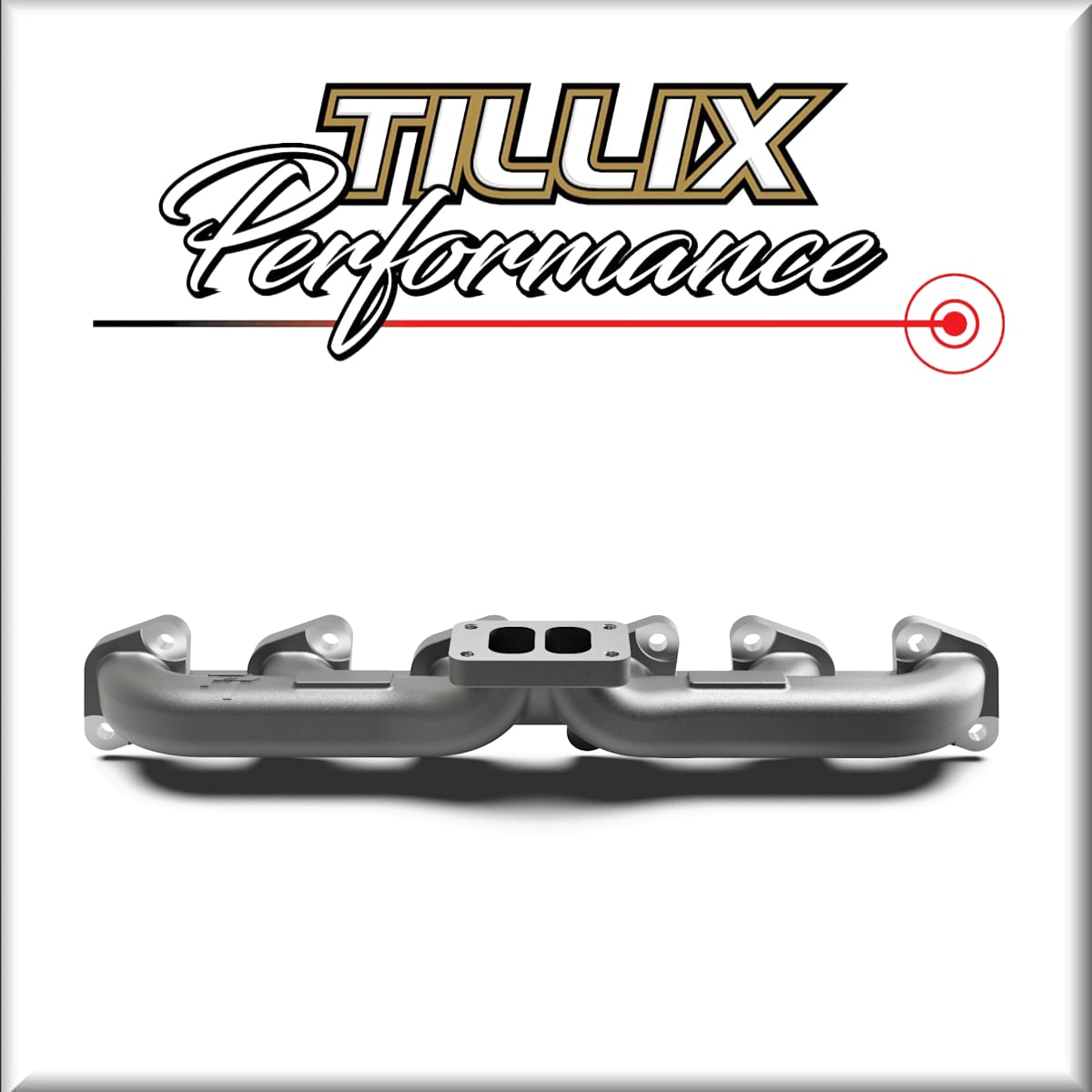

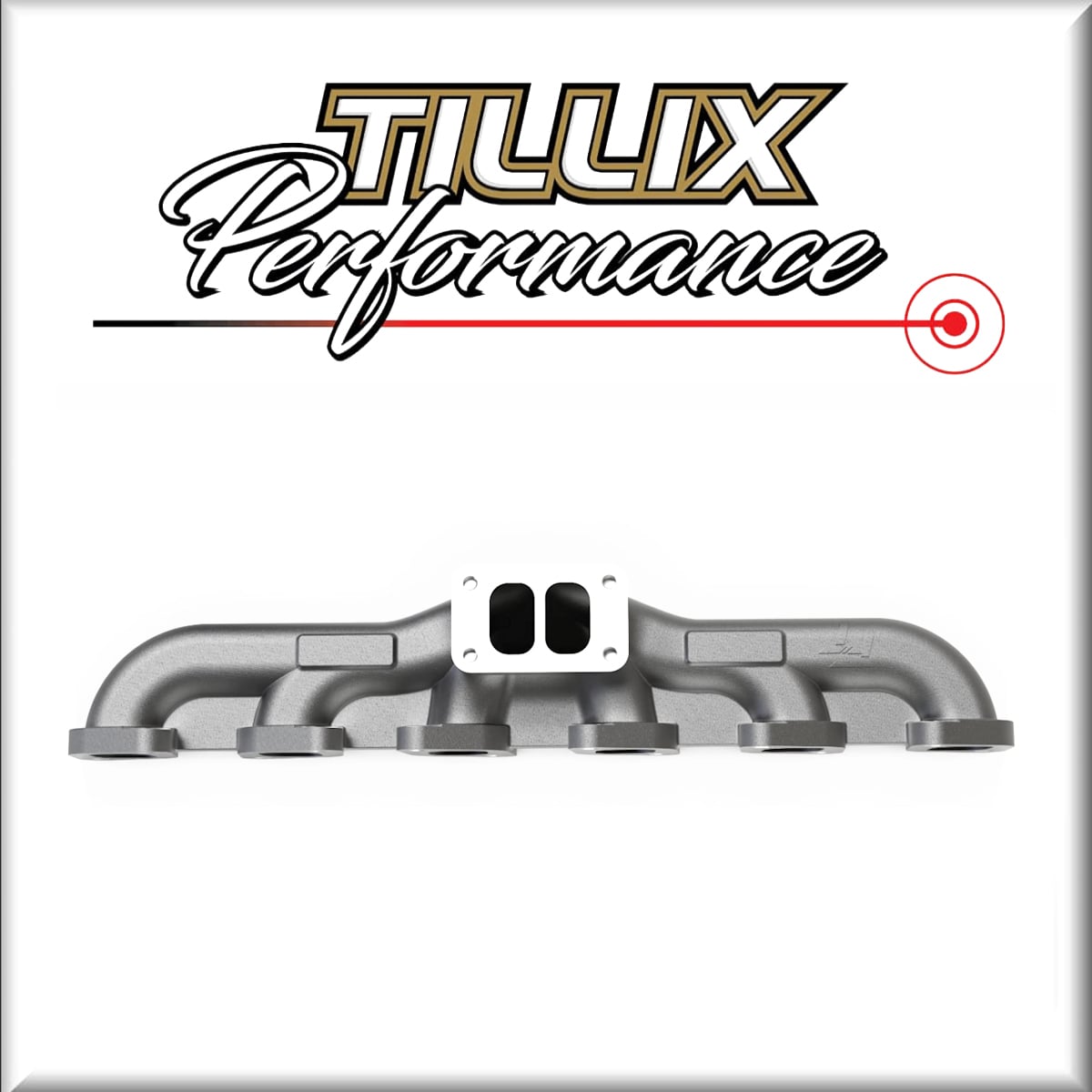

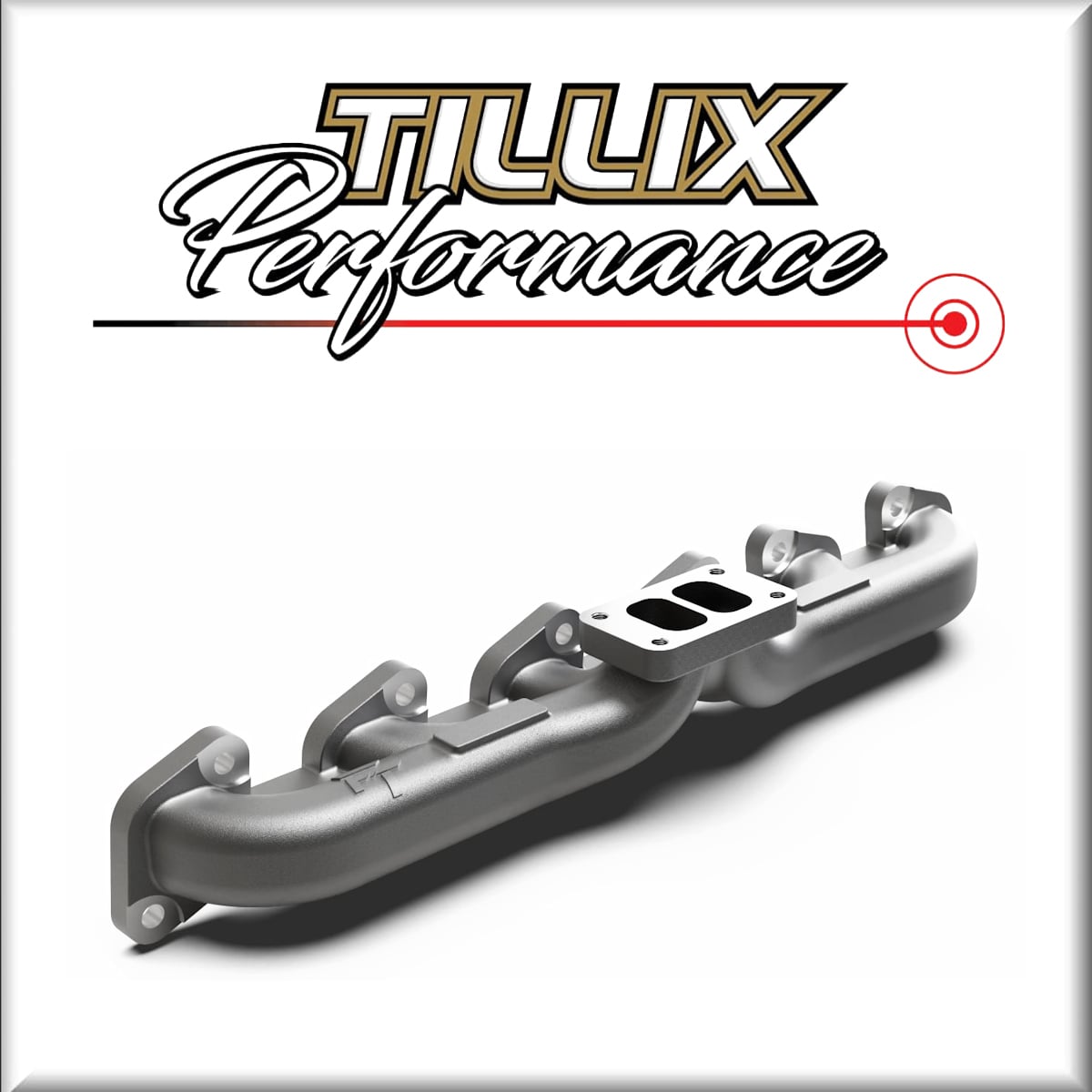

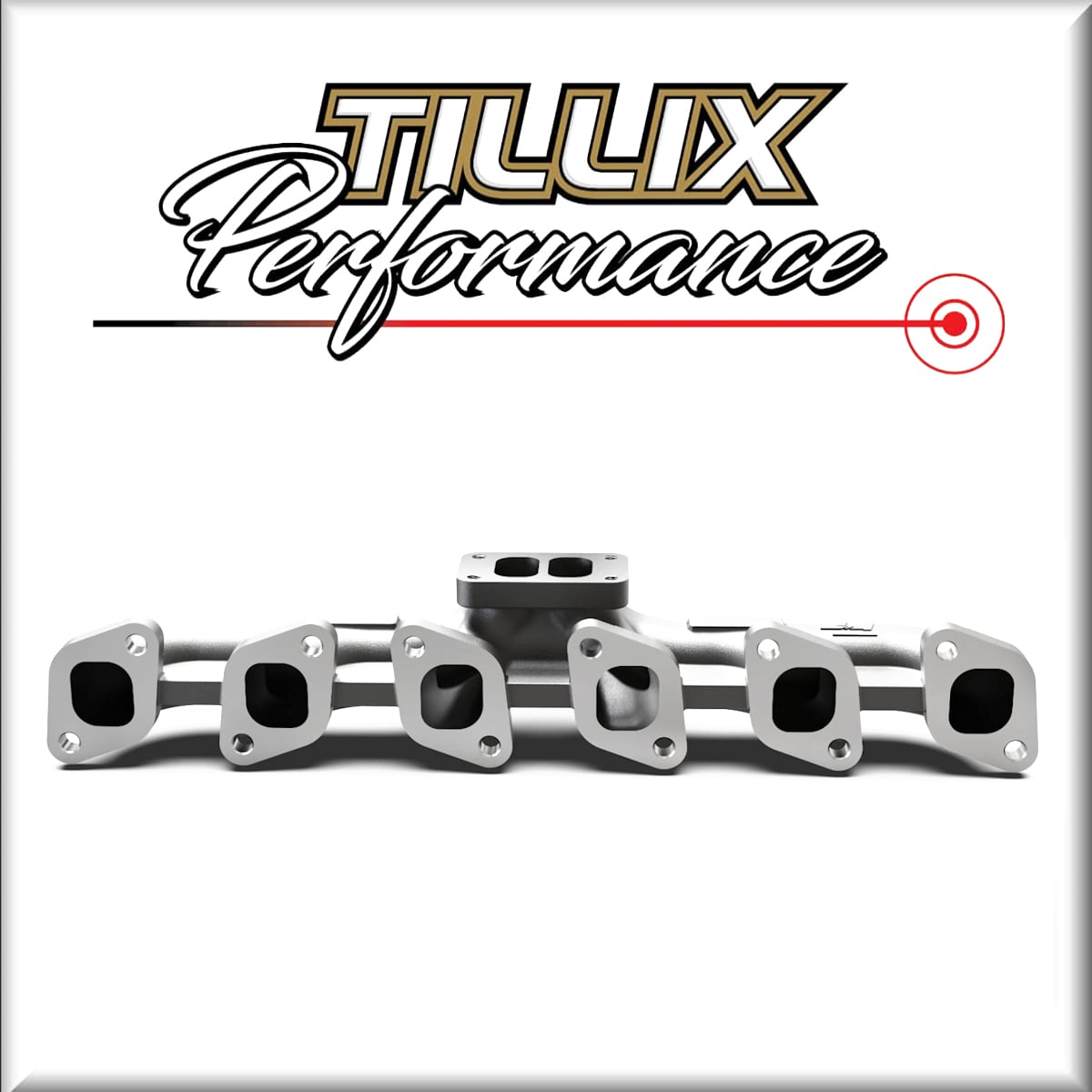

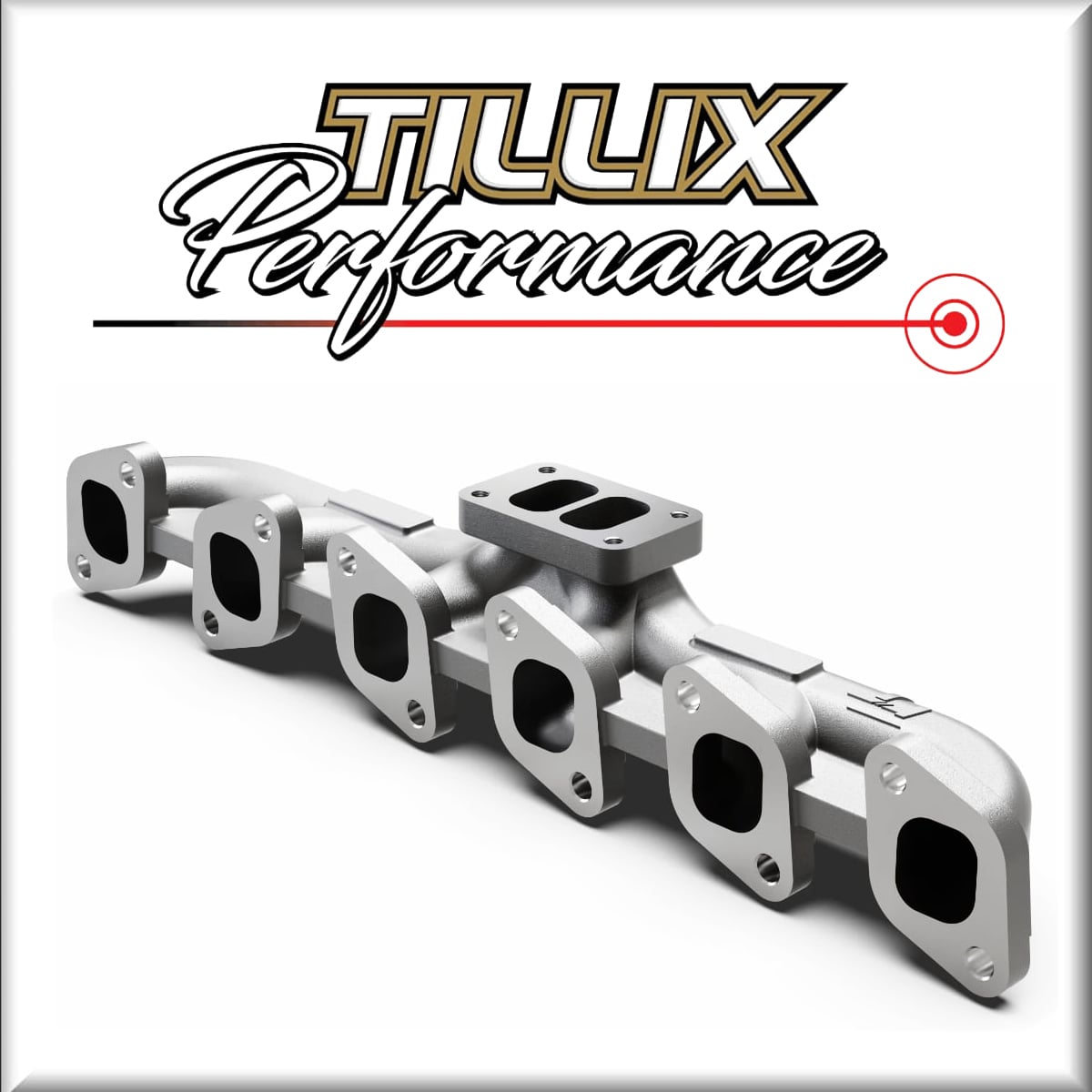

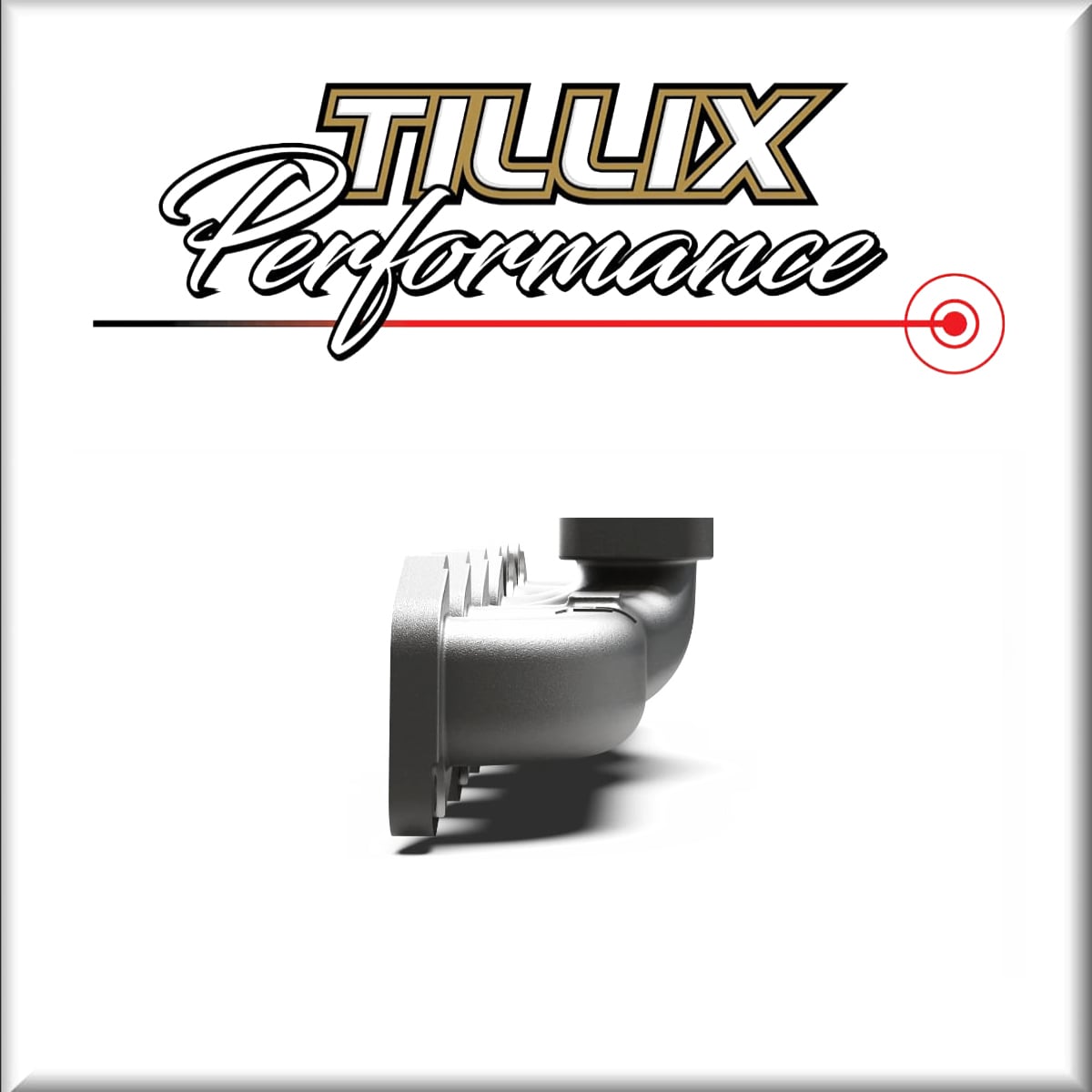

Rendered images are used as a representation of the product only. The overall product may vary slightly in general appearance and surface finish.
If you prefer silver or other types of coatings, please contact us prior to ordering for lead times on these. Additional freight costs may be incurred for variations other than Raw or Extreme Temp HPC.
